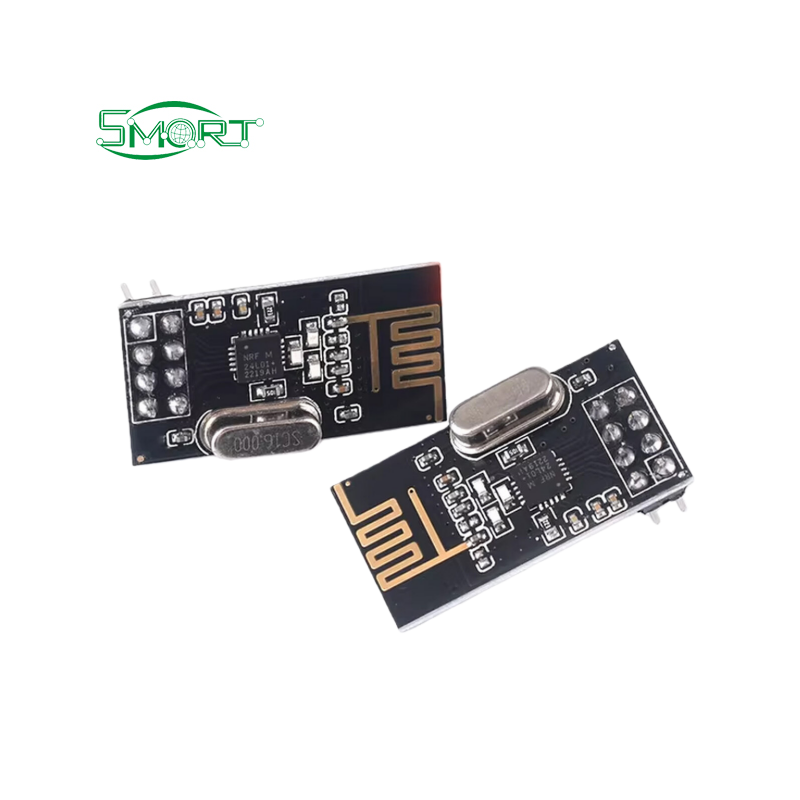

Smart Electronics Black NRF24L01 2.4 GHz Wireless Module Mini Transceiver Communication Module

Black NRF24L01 2.4 GHz Wireless Module Mini Transceiver Communication Module
shared：

Parameter PerformanceSupports six-channel data reception (one-to-six) Supports common modulation schemes such as GFSK/FSK Supports 2Mbps/1Mbps/250Kbps data rates with configurable transmit power Multi-frequency points: 126 frequency points, supporting multi-point and frequency-hopping communication.

Frequency range: 2400MHz–2525MHz, 1MHz frequency hopping step Integrated high PSRR LDO Wide supply voltage range: 1.9–3.6V, typical 3.3V Receiver sensitivity: -96dBm @ 250kbps Features a 4-wire SPI interface with data rates up to 10MHz (nRF24L01+, SI24R1), BK2425 supports 8MHz Integrated intelligent ARQ baseband protocol engine Hardware interrupt output for data transmission/reception Supports 1-bit RSSI output Operating temperature: -20°C to 85°C
