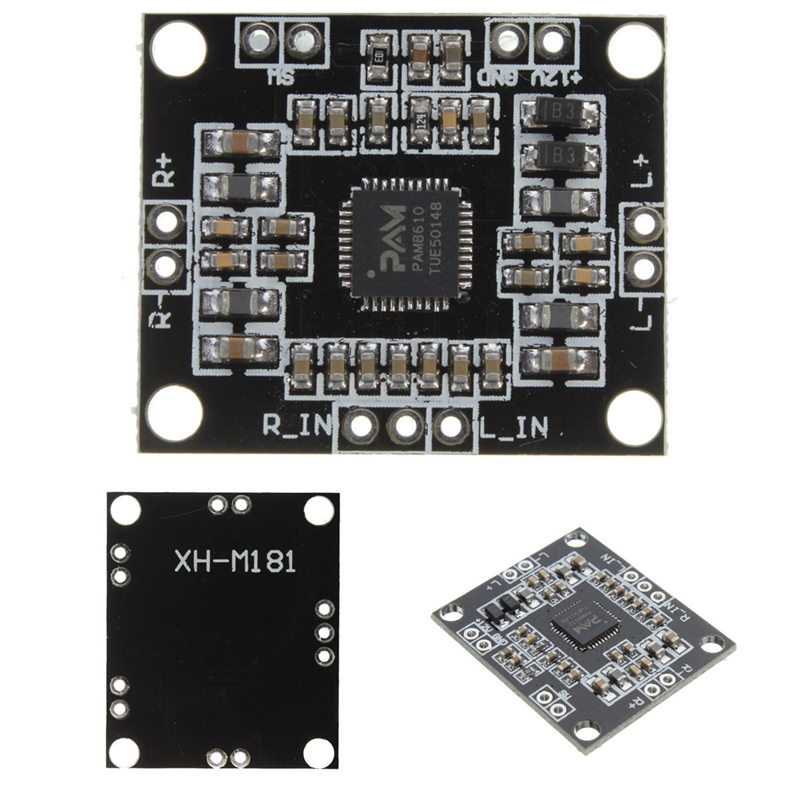

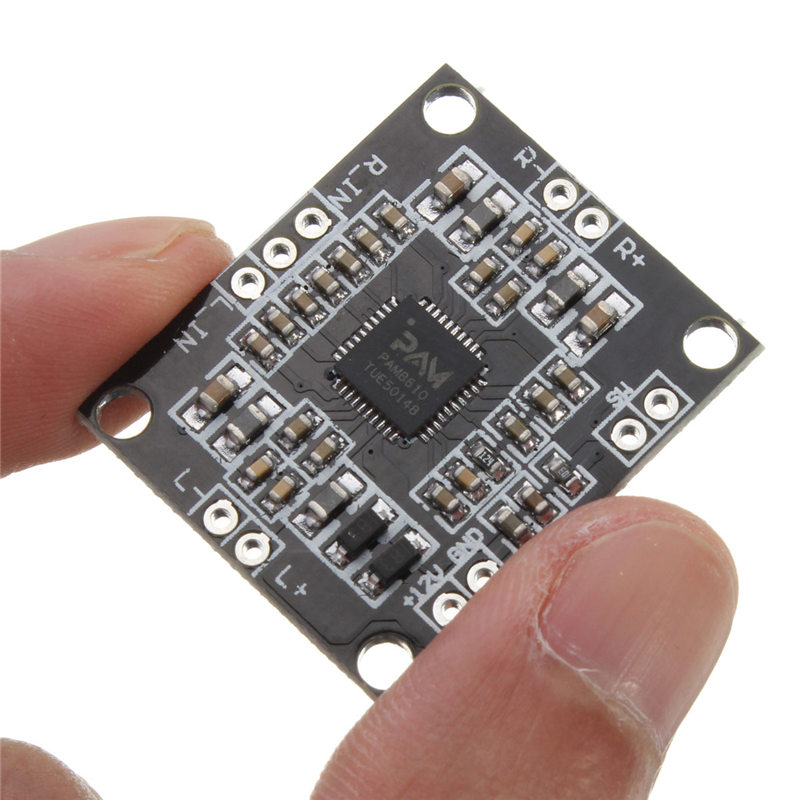

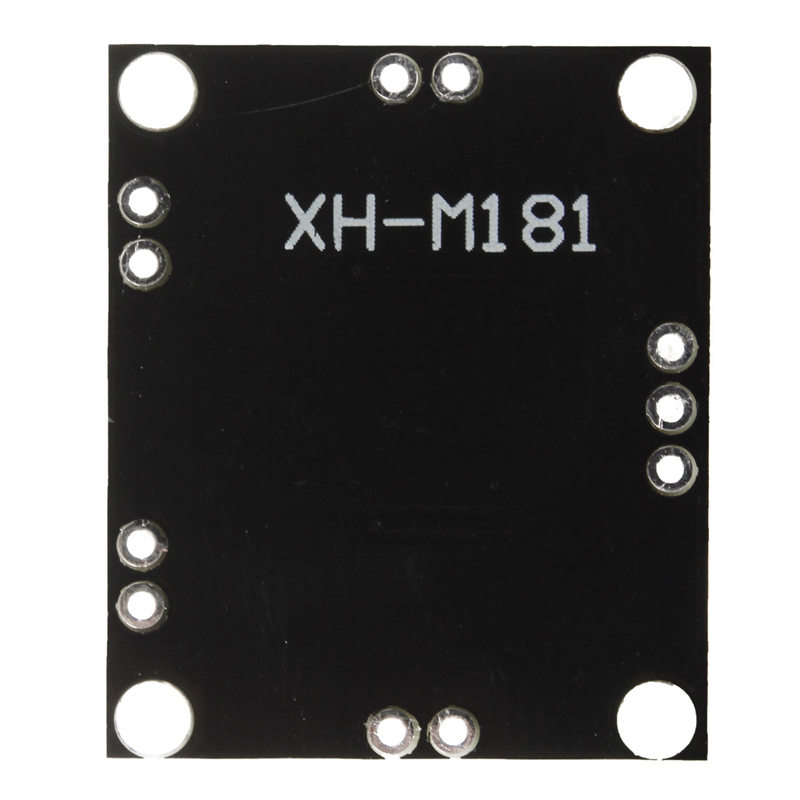

Smart Electronics Electric Unit PAM8610 12V 2x15W Dual Channel Stereo C Digital power amplifier board

Electric Unit PAM8610 12V 2x15W Dual Channel Stereo C Digital power amplifier board

This plate with switching function, SW short, will turn off the power amplifier
Working Mode: Class D (PWM modulation type)
Chip Type: PAM8610
Power Range: DC 6V-15V (self-protection)
Recommended Voltage: DC 12V(2A)
Output Power: 10Wx2(8Ω) 15Wx2(4Ω)
Frequency Response: 20HZ-15KHZ
Static Current: 20MA (DC12V)
SNR: 90% Recommended
Speakers: 10-100W
Input Impedance: 15K
Output Impedance: 4-8Ω
Harmonic Distortion: <0.1%

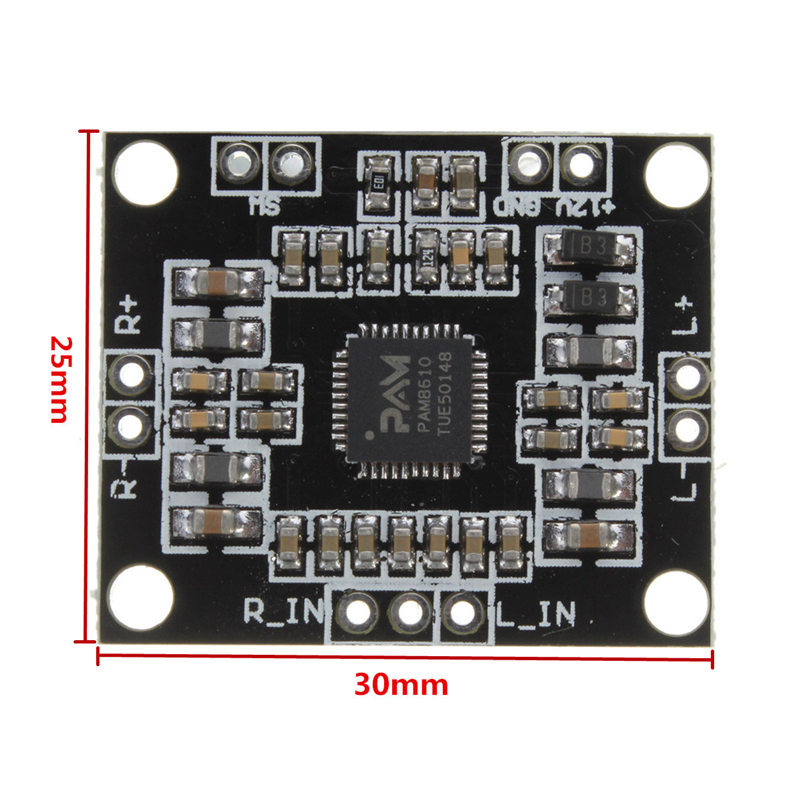

Size: Approx. 3cm x 2.5cm/ 1.19" x 0.98"
shared：


This plate with switching function, SW short, will turn off the power amplifier
Working Mode: Class D (PWM modulation type)
Chip Type: PAM8610
Power Range: DC 6V-15V (self-protection)
Recommended Voltage: DC 12V(2A)
Output Power: 10Wx2(8Ω) 15Wx2(4Ω)
Frequency Response: 20HZ-15KHZ
Static Current: 20MA (DC12V)
SNR: 90% Recommended
Speakers: 10-100W
Input Impedance: 15K
Output Impedance: 4-8Ω
Harmonic Distortion: <0.1%
Size: Approx. 3cm x 2.5cm/ 1.19" x 0.98"
