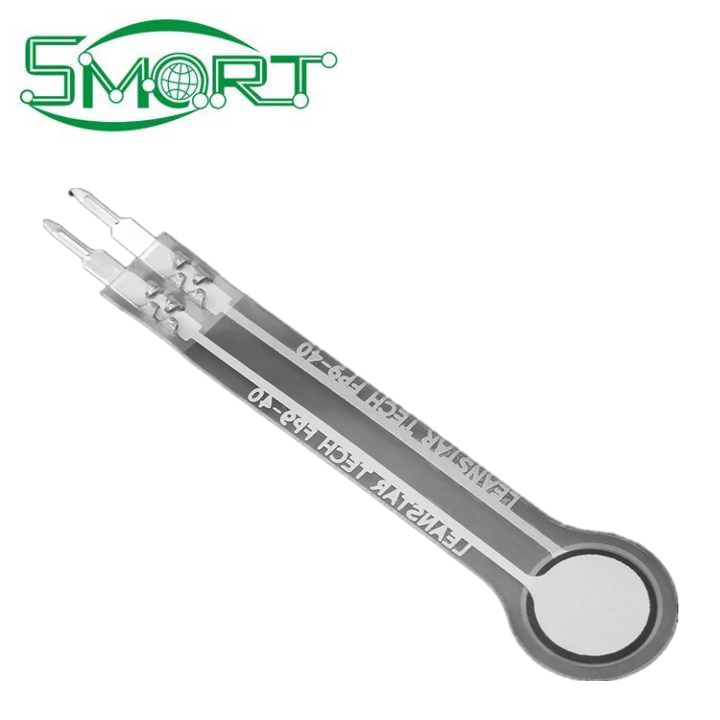

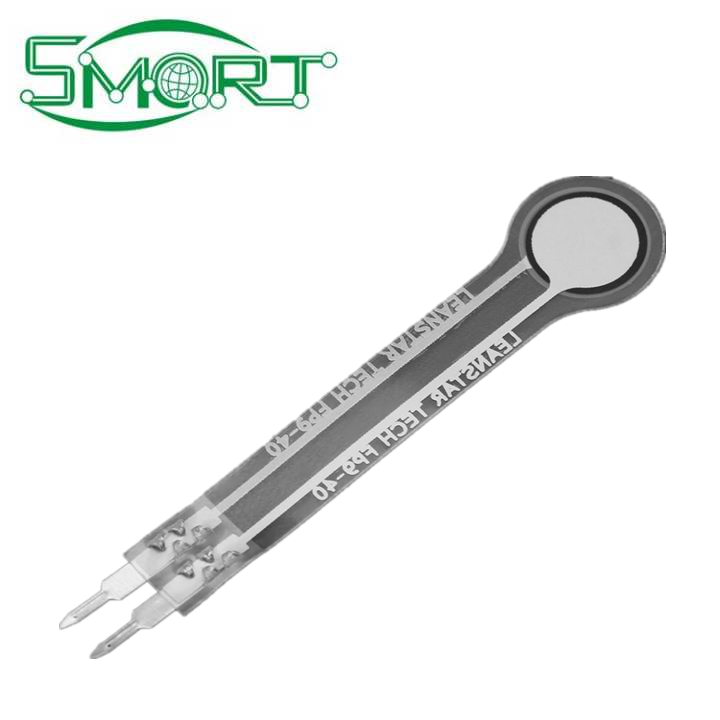

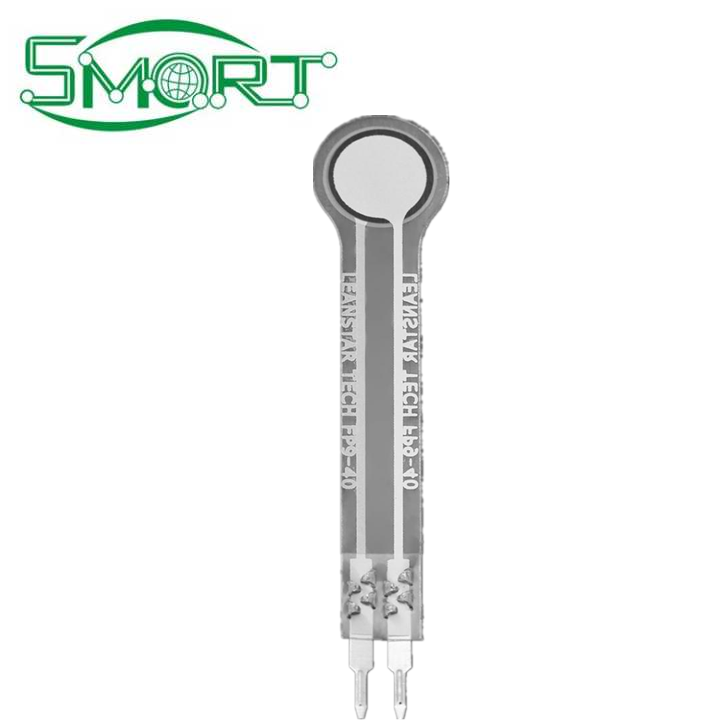

Thin Film Pressure Sensor DF9-40 High Precise Force Sensing Resistor Resistance-type Flexible Pressure Sensor

This flexible pressure sensor is based on new nanometer pressure-sensitive materials supplemented by ultra-thin film substrate.

Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure.

It has pressure sensitive function as well as water-resistant function.

When sensor detects outside pressure, the resistance of sensor will change.

Pressure signal can be converted into a corresponding electrical signal output using simple circuit.
shared：



Features:

  • This flexible pressure sensor is based on new nanometer pressure-sensitive materials supplemented

    by ultra-thin film substrate.

  • Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure.

  • It has pressure sensitive function as well as water-resistant function.

  • When sensor detects outside pressure, the resistance of sensor will change.

  • Pressure signal can be converted into a corresponding electrical signal output using simple circuit.

Specifications:

Measuring Range: 0-500g, 0-2kg, 0-5kg, 0-10kg, 0-20kg
Thickness: <0.25mm
Precision: ±2.5%(85% measuring range)
Repeatability: <±5.8(50% load)
Lifespan: >1million times
Initial Resistance: >10MΩ(no load)
Response Time: <1ms
Restore Time: <15ms
Test Voltage: DC 3.3V (typical)
EMI: Not generate
EDS: Not sensitive

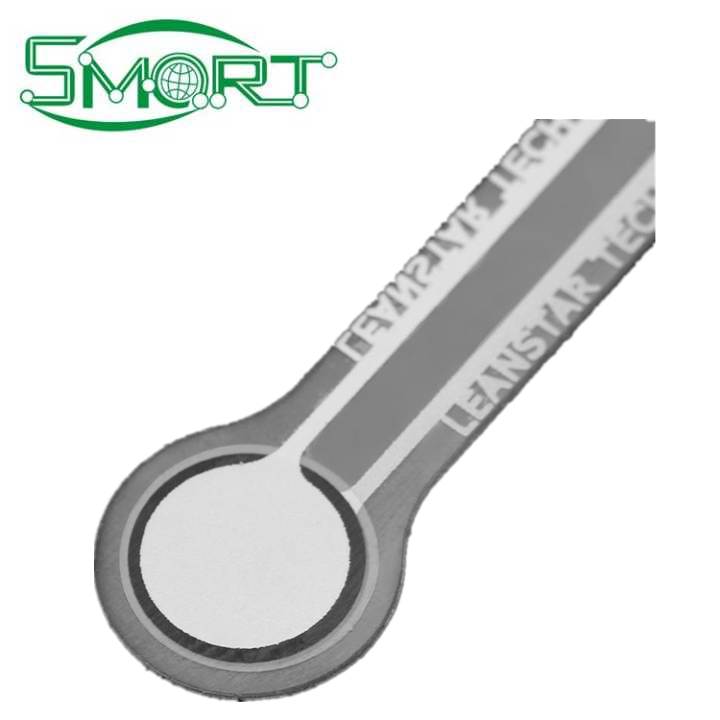

Sensing Area Outer Diameter: 9mm
Sensing Area Inner Diameter: 7.5mm
Pin Spacing: 2.54mm

Quantity: 5

Package Includes:

1 x 0-500g Pressure Sensor

1 x 0-2kg Pressure Sensor

1 x 0-5kg Pressure Sensor

1 x 0-10kg Pressure Sensor

1 x 0-20kg Pressure Sensor
