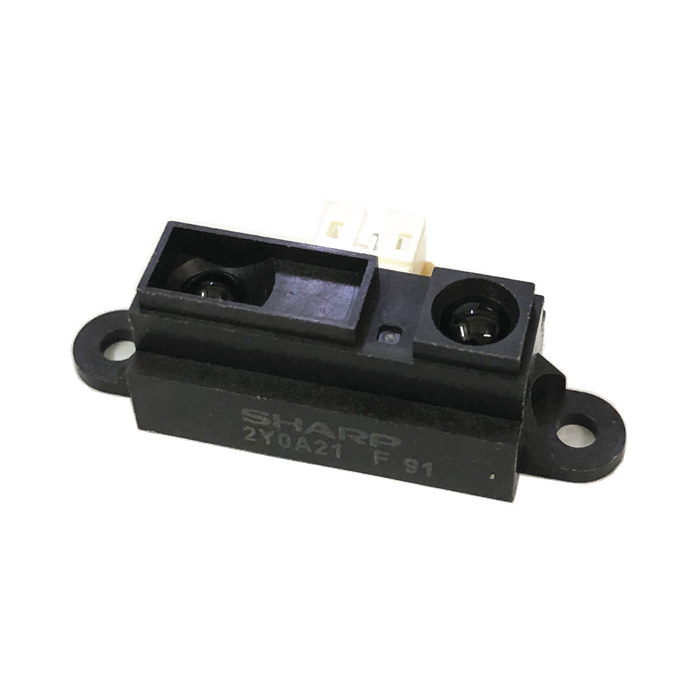

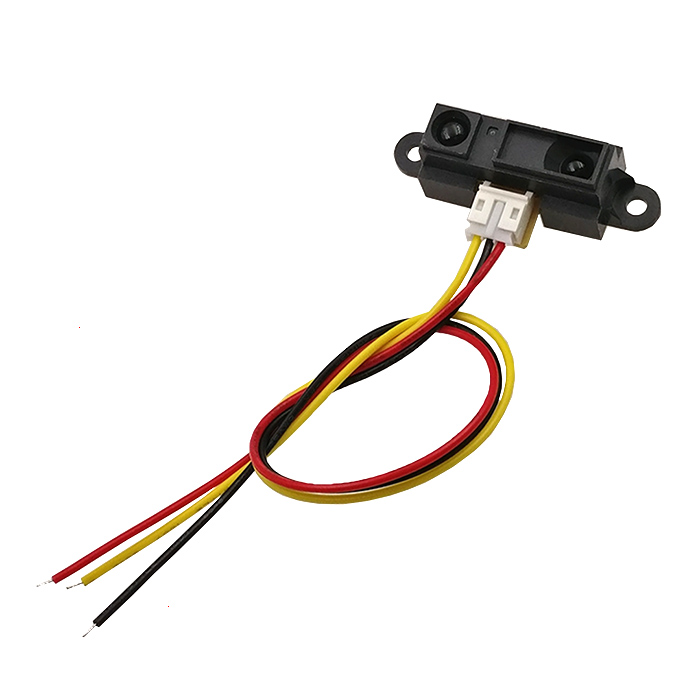

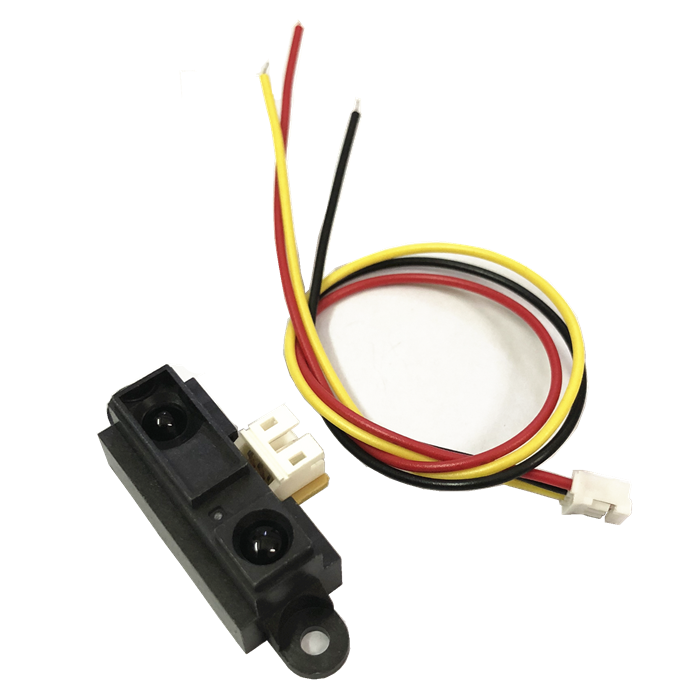

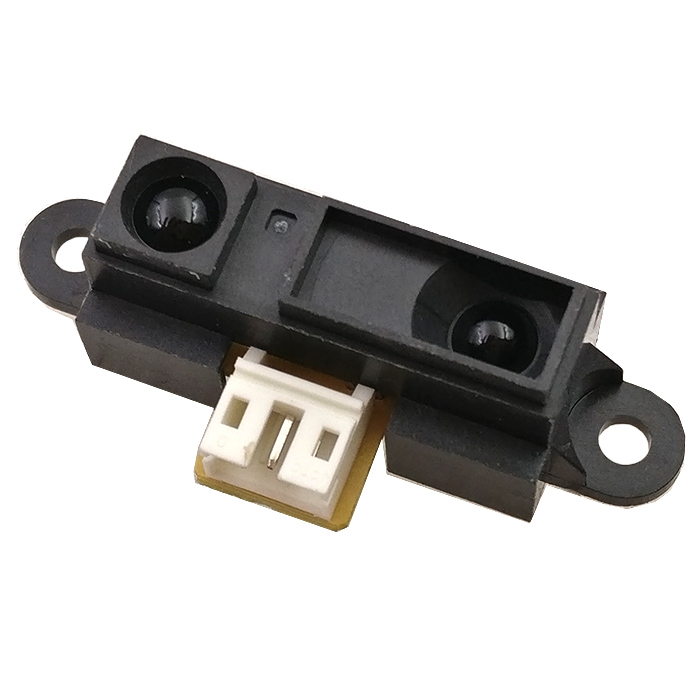

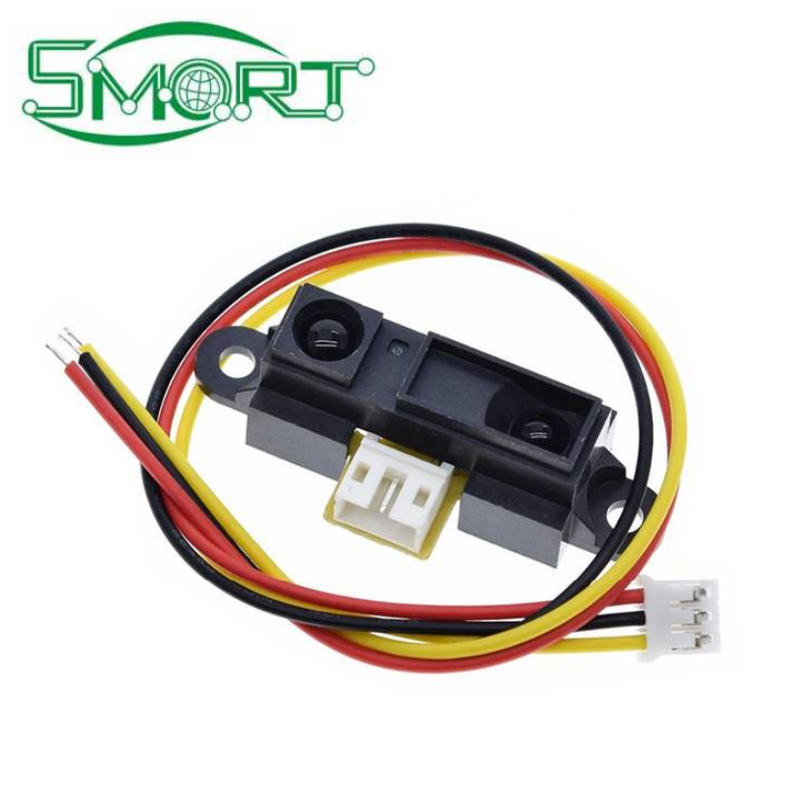

Distance sensor GP2Y0A21YK0F 10-80cm infrared distance sensor module

shared：
Model Number
gp2y0a21yk0f
Measurement distance
10-80cm
Maximum allowable angle
>40 °
Power supply voltage
4.5-5.5V
Average power consumption
35 mA
Peak power consumption
approximately 200 mA
Update frequency/cycle
25Hz/40ms
Analog output noise
<200 mV
Less impact on the color of reflected objects, with lower reflectivity Range output/range judgment type lineup: Distance output type (analog voltage): GP2Y0A21YK Distance judgment type: GP2Y0D21YK Determine the distance as 24cm
