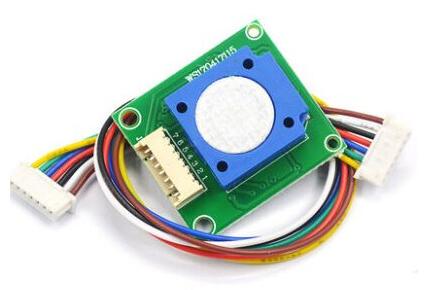

Ozone gas sensor module ZE25-O3

The ZE25-O3 electrochemical ozone module is a general-purpose, compact module. The electrochemical principle is used to detect the ozone gas present in the air, which has good selectivity and stability. Built-in temperature sensor for temperature compensation; digital output and analog voltage output for easy use. ZE25-O3 is a universal gas module designed and manufactured by combining sophisticated electrochemical detection technology with sophisticated circuit design.
shared：


    The ZE25-O3 electrochemical ozone module is a general-purpose, compact module. The electrochemical
principle is used to detect the ozone gas present in the air, which has good selectivity and stability. Built-in
temperature sensor for temperature compensation; digital output and analog voltage output for easy use.
ZE25-O3 is a universal gas module designed and manufactured by combining sophisticated electrochemical
detection technology with sophisticated circuit design.

Features:

  • High sensitivity, high resolution, low power consumption and long service life

  • Provide UART, analog voltage signal two output methods

  • High stability, excellent anti-interference ability, temperature compensation, excellent linearity output


Application:

Portable instruments, air quality monitoring equipment, disinfection cabinets, smart home equipment and other places.

Parameter:

  • Detection gas: O3

  • Interfering gas: gases such as alcohol

  • Output data: DAC (0.4 to 2V voltage signal corresponding concentration: 0 ~ 4.10PPM), UART output (3V level)

  • Working voltage: 3.7V ~ 5.5V (no voltage reverse protection)

  • Protection)

  • Warm-up time: ≤ 3 minutes

  • Response time: ≤90 seconds

  • Recovery time: ≤90 seconds

  • Range: 0 ~ 10ppm

  • Resolution: 0.01ppm

  • Working temperature: -10 ° C ~ 55 ° C

  • Working humidity: 15% RH-90% RH (no condensation)

  • Storage temperature: -20 ° C ~ 55 ° C
