Smart Electronics AM2305 Digital temperature and humidity sensor

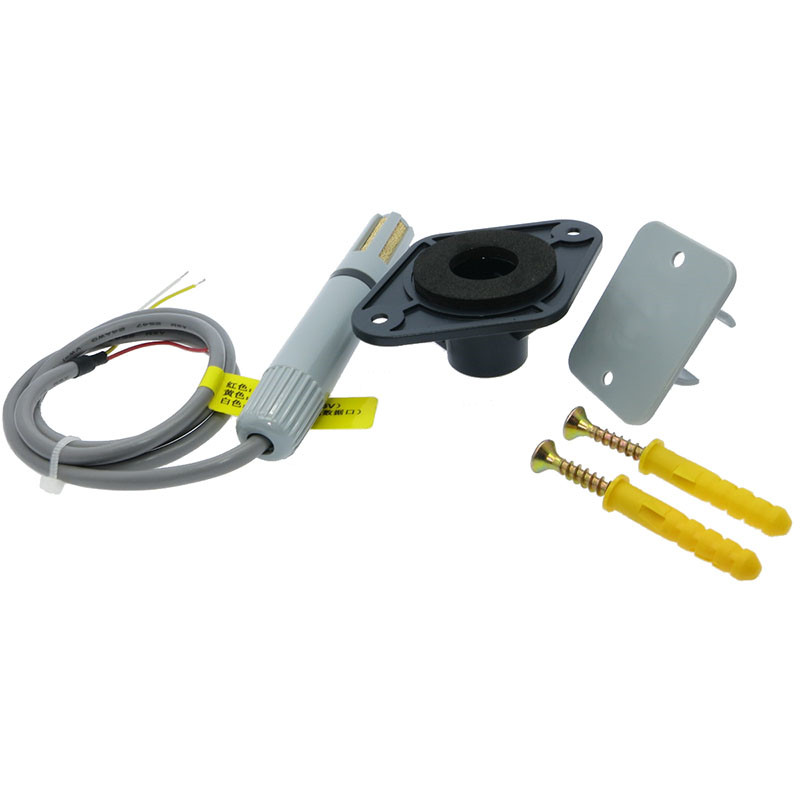

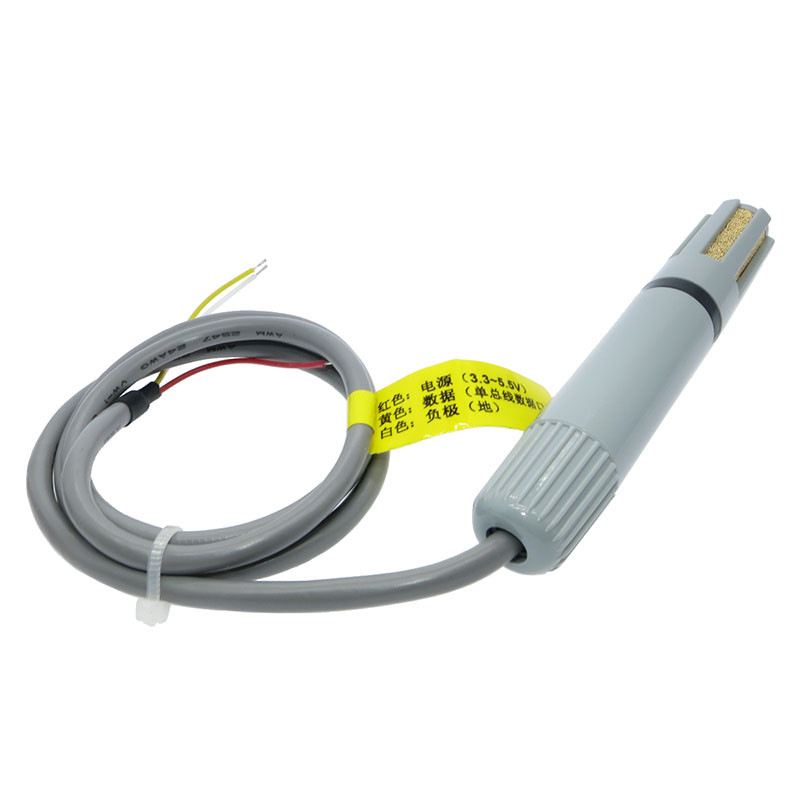

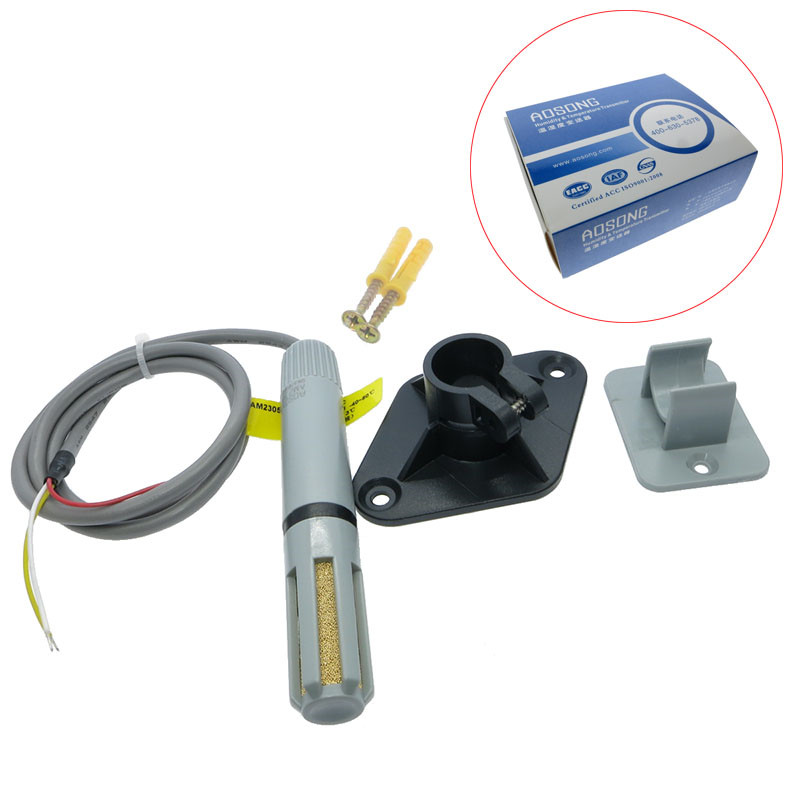

AM2305 Digital temperature and humidity sensor

1) The relative humidity and temperature, calibration of all digital output
2) Excellent long-term stability
3) Without additional components
4) Long distance signal transmission
5) ultra low power
6) 4 pin installation
7) Completely interchangeable
shared：

AM2305 Product Overview:

AM2305 digital temperature and humidity sensor is a calibrated digital signal output of the temperature and
humidity combined sensor. It uses a dedicated digital modules capture technology and the temperature and
humidity sensor technology to ensure that products with high reliability and excellent long-term stability.
Sensor includes a capacitive humidity sensing element and a temperature measurement devices, and with a
high-performance 8-bit microcontroller connected. Therefore, the product has excellent quality, fast response,
anti-interference ability, high cost and other advantages. Each AM2305 sensors are calibrated in a precision
humidity calibration chamber. Calibration coefficients stored in the form of a program OTP memory, internal
sensor detection signal in the process to call these calibration coefficients. Single-wire serial interface, the system
integration becomes simpler and quicker. Ultra-small size, low power consumption, signal transmission distance up
to 20 meters, making all kinds of applications and even the most demanding applications the best choice is.
Products for the 4-pin single row pin package. Easy connection, special packages according to user needs and available.

Parameters:

Measuring range 0-100% RH
Temperature range of -40 ~ 80
Measuring precision ± 2% RH
Measurement Accuracy ± 0.2
Resolution 0.1
Interchangeability fully interchangeable

 Long-term stability of ± 0.3% RH / Year
