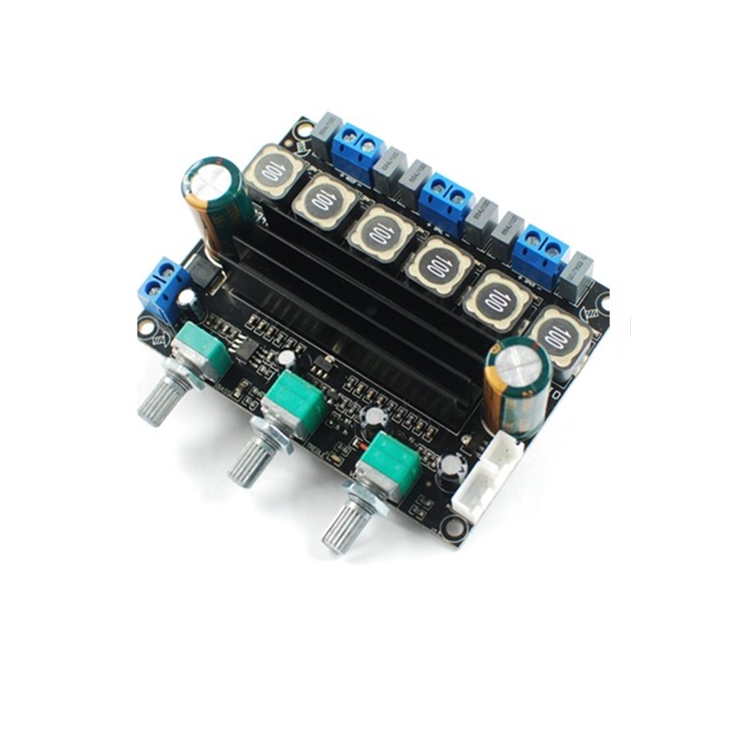

Smart Electronics TPA3116D2 high power /HIFI digital 2.1 power amplifier board 10-25V

TPA3116D2 high power /HIFI digital 2.1 power amplifier board 10-25V

Product Name: high power digital 2.1 power amplifier board

Chip type: tpa3116d2 * 2

Input voltage: dc10-25v (DC)

Output power: 50wx2 + 100wxi Max

Channel: dual channel + 0.1 subwoofer

Output impedance: 4-8 Ω

Frequency response 20Hz-20KHz

Protection function: short circuit overheat power supply anti reverse connection

Switching frequency: 1.2MHz

Features: power on delay / anti shock

Size: about 88 * 66 * 27.6m

Net weight: about 105g
shared：


Product Name: high power digital 2.1 power amplifier board

Chip type: tpa3116d2 * 2

Input voltage: dc10-25v (DC)

Output power: 50wx2 + 100wxi Max

Channel: dual channel + 0.1 subwoofer

Output impedance: 4-8 Ω

Frequency response 20Hz-20KHz

Protection function: short circuit overheat power supply anti reverse connection

Switching frequency: 1.2MHz

Features: power on delay / anti shock

Size: about 88 * 66 * 27.6m

Net weight: about 105g
