Smart Electronics MLX90640BAA/B 32 * 24 infrared temperature measurement dot matrix sensor module Infrared imaging/IR thermal imager camera module

MLX90640BAA/B 32 * 24 infrared temperature measurement dot matrix sensor module Infrared imaging/IR thermal imager camera module

SKU1-MLX90640ESF-BAB-000-TU probe
SKU2-MLX90640ESF-BAA probe

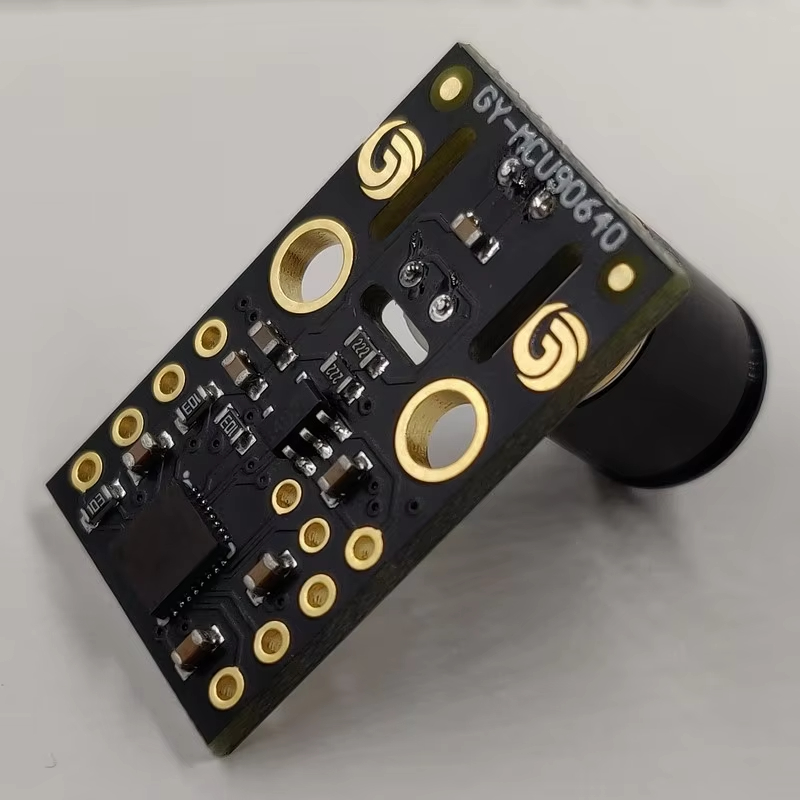

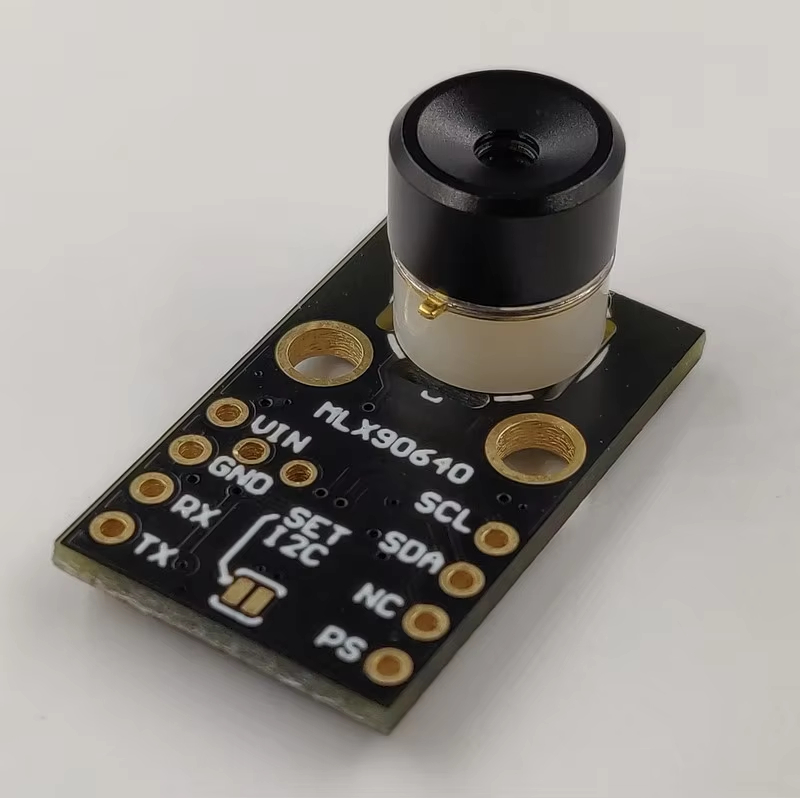

SKU3-MLX90640ESF-BAA module
SKU4-MLX90640ESF-BAB module

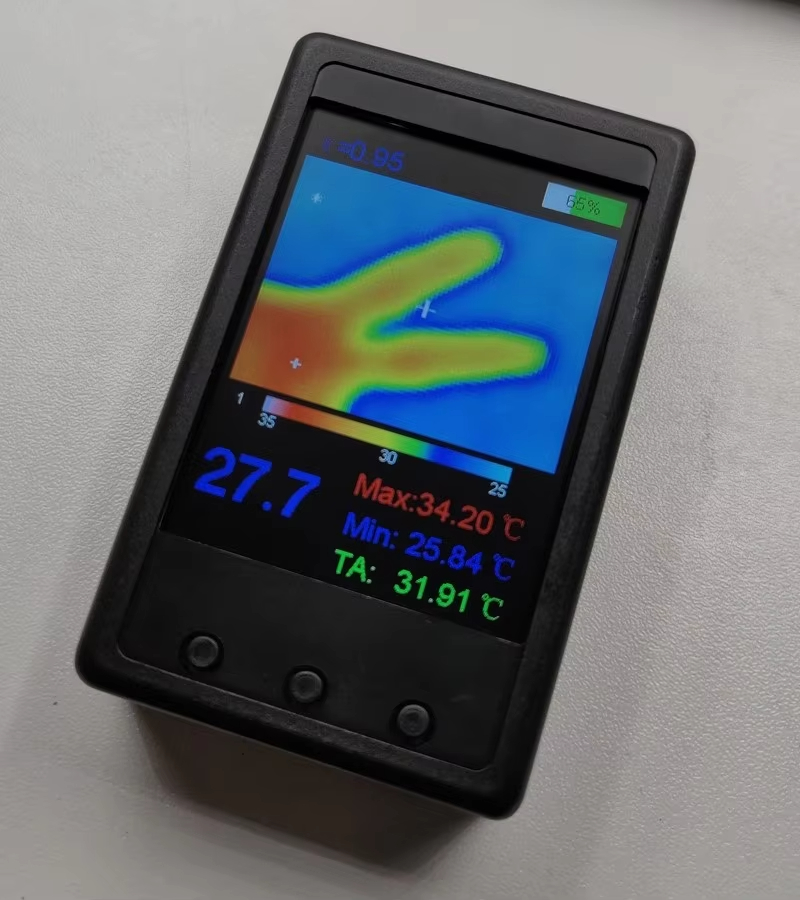

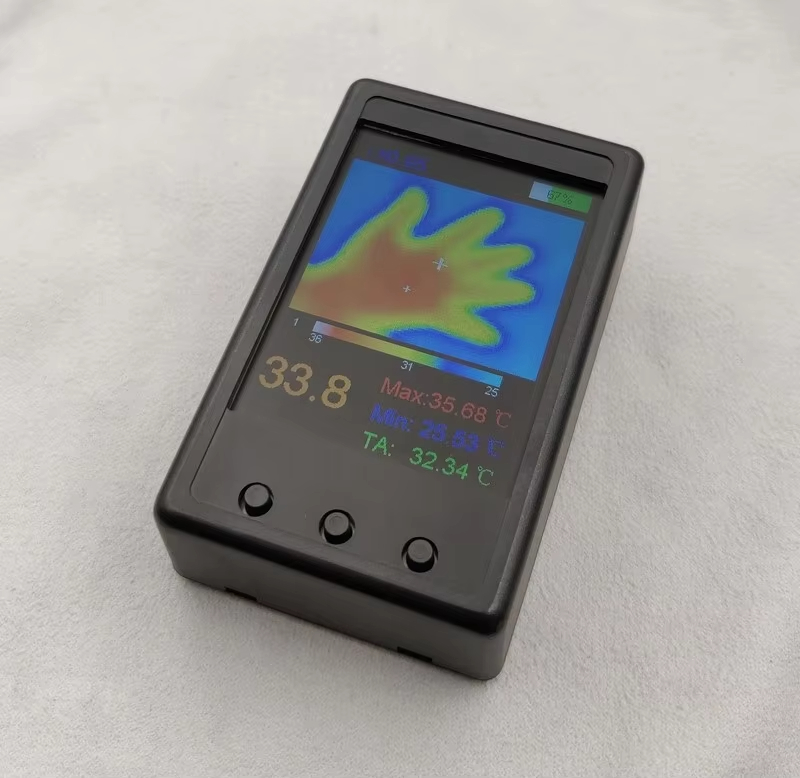

SKU5-GY-LCD90640-BAB with screen housing
SKU6-GY-MODBUS-90640BAB Metal Tube MODBUS Protocol
SKU7-GY-IR8062 80 * 60 resolution TTL output

MLX90640BAA field of view 110 * 75 degrees (large angle, suitable for close measurement)
MLX90640BAB field of view angle 55 * 35 degrees (small angle, suitable for long-distance measurement)
shared：

Purchase Notes

This product link contains seven SKU. The price of each SKU is different. Please specify which SKU

you need, and then ask the salesman for a quotation.

Model Number
SKU1-MLX90640ESF-BAB-000-TU probe
SKU2-MLX90640ESF-BAA probe
SKU3-MLX90640ESF-BAA module
SKU4-MLX90640ESF-BAB module
SKU5-GY-LCD90640-BAB with screen housing
SKU6-GY-MODBUS-90640BAB Metal Tube MODBUS Protocol
SKU7-GY-IR8062 80 * 60 resolution TTL output
Measurement range
-40 °~300 °
Resolution
0.1 °
Measurement accuracy
± 2
Repetitive accuracy
± 2
Response frequency
8Hz (460800bps)
Working voltage
3-5 V
Working current
42mA
Working temperature
-20 °~85 °
Storage temperature
-40 ° C~125 ° C
Size
15.5mm × 25mm
MLX90640BAA field of view 110 * 75 degrees (large angle, suitable for close measurement) MLX90640BAB field of view angle 55 * 35 degrees (small angle, suitable for long-distance measurement)
