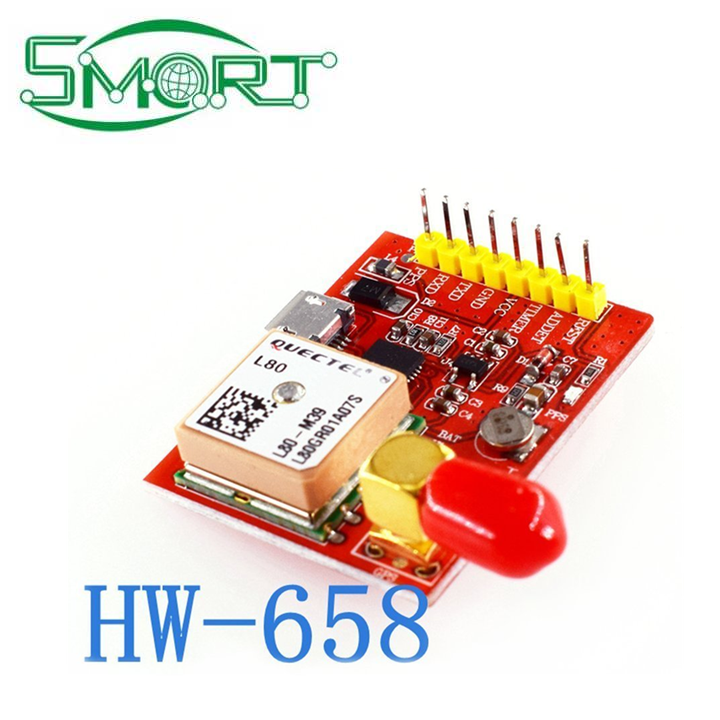

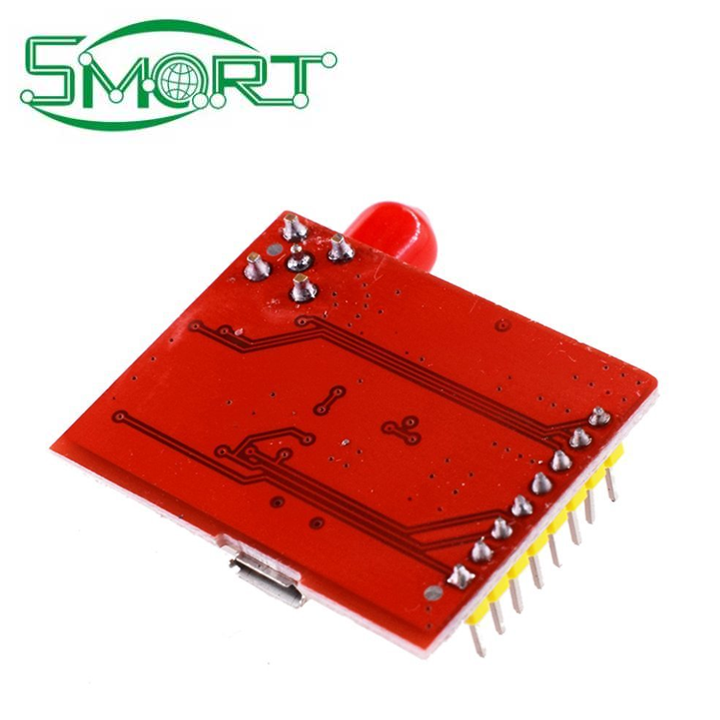

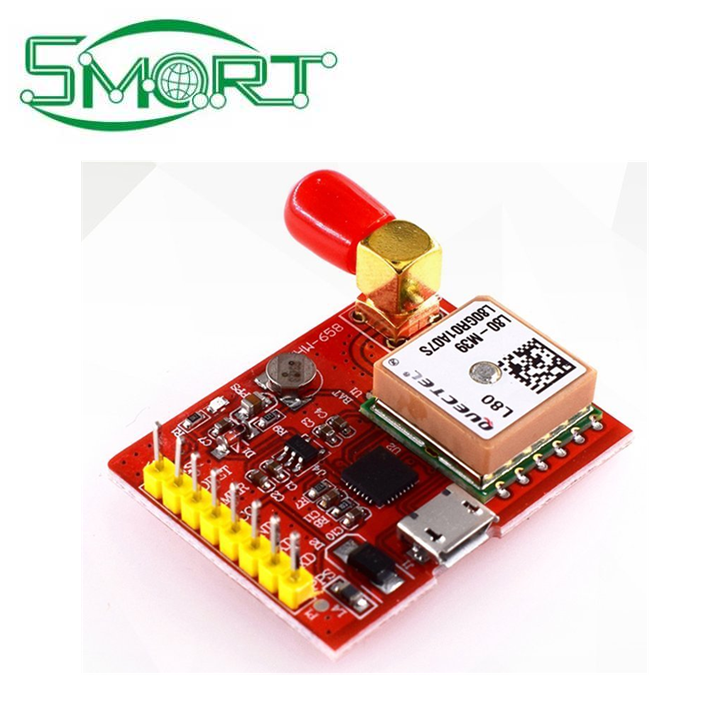

Smart Electronics HW-658 USB Port GPS Module For Raspberry Pi

HW-658 USB Port GPS Module For Raspberry Pi

Suitable For Raspberry Pi A B A+ B+ Zero 2 3.
Connect via 1*8 2.54 separation distance pin header or USB micro data cable.
Adopting L80-39 mould project, with 15 x 15 x 4mm Patch aerial.
Super low power consumption, quick location.
Support Short-circuit Protection and Aerial Detection.
Support self-auxiliary AGPS (EASY technology), no need of external memory.
Support LOCUS, DGPS, SBAS(WAAS/EGNOS/MSAS/GAGAN).
shared：


Features:
Suitable For Raspberry Pi A B A+ B+ Zero 2 3.
Connect via 1*8 2.54 separation distance pin header or USB micro data cable.
Adopting L80-39 mould project, with 15 x 15 x 4mm Patch aerial.
Super low power consumption, quick location.
Support Short-circuit Protection and Aerial Detection.
Support self-auxiliary AGPS (EASY technology), no need of external memory.
Support  LOCUS, DGPS, SBAS(WAAS/EGNOS/MSAS/GAGAN).



Description:

Channel22 (tracking) / 66 (capturing)Voltage:3.3-5V
Working currentMax 100mAWorking temp-40~+85℃
 GPS mode L80-39 Location precision <2.5m CEP
 Speed precision <0.1 m/s Capturing sensitivity -148dm
 Tracking sensitivity -165dm Replacement rate default: 1HZ, Max: 5HZ
 Data format NMEA0183 protocol Connection method 1*8 2.54 separation distance pin header, USB micro data cable



Specifications:
Material: plastic
Color: red
Item Size: 39.1 x 29mm
Aerial Size: 15 x 15 x 4 mm
