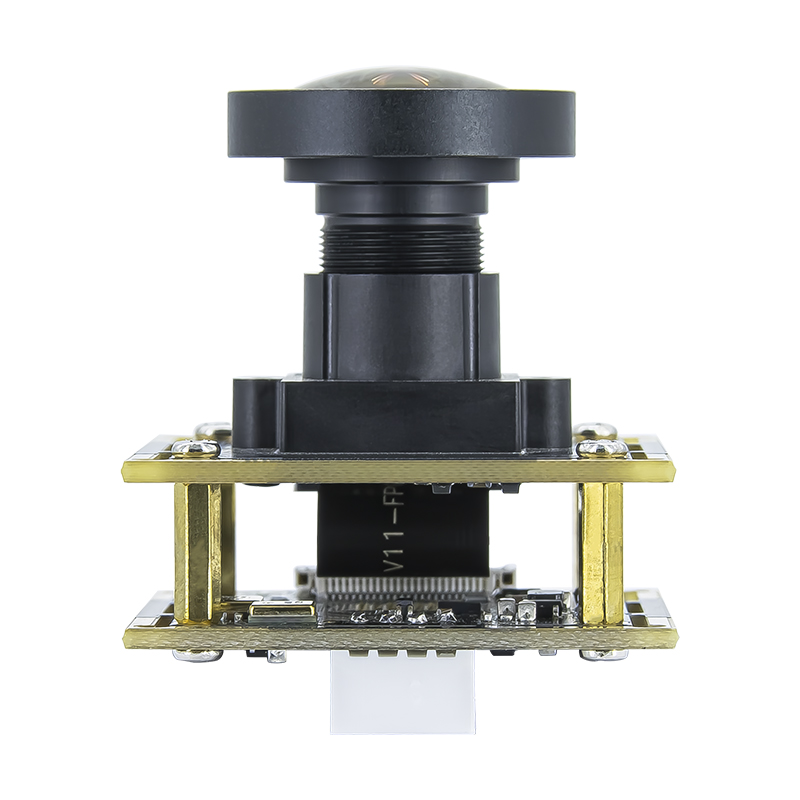

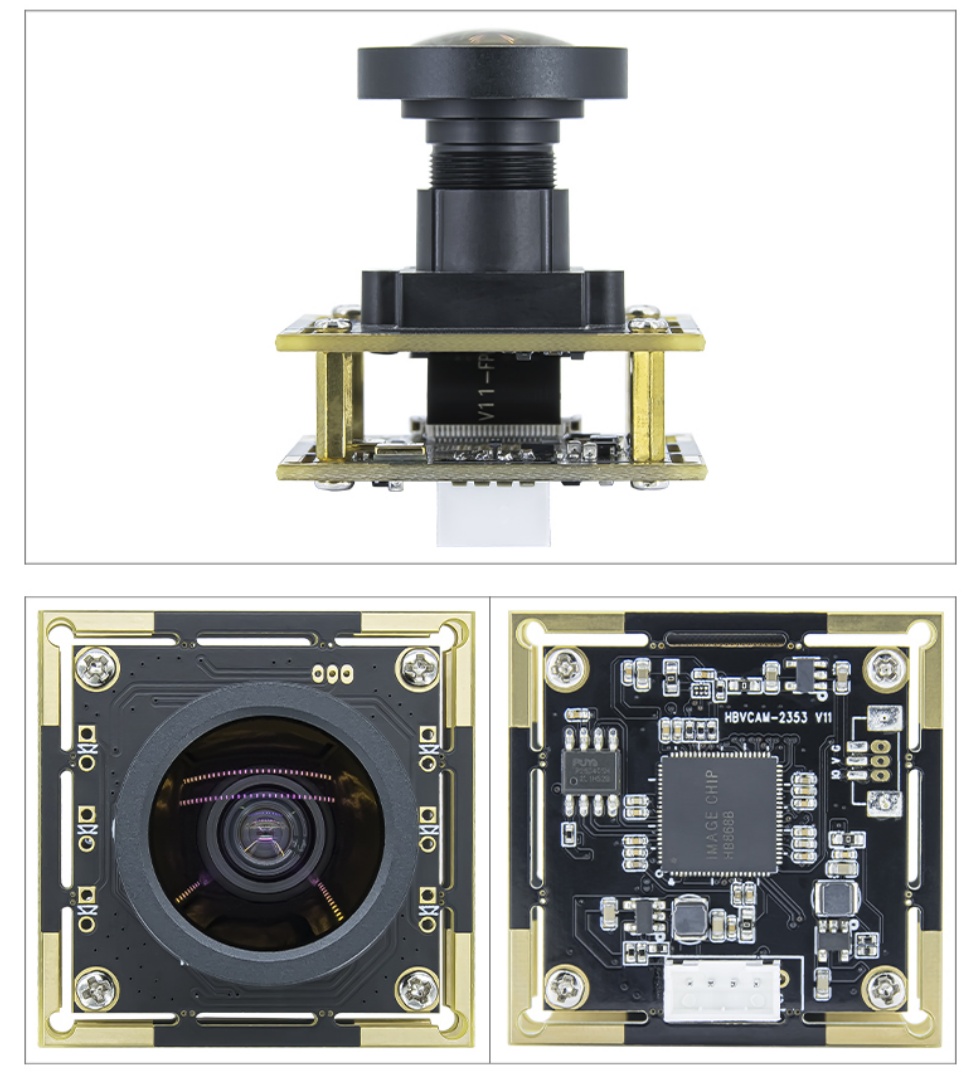

Smart Electronics 8.29 Megapixel USB Camera Module 4K30 fps Industrial Camera IMX678 Modules

Products > Camera Module > Smart Electronics 8.29 Megapixel USB Camera Module 4K30 fps Industrial Camera IMX678 Modules
    • 1
    • 2
    • 3
    • 4

Smart Electronics 8.29 Megapixel USB Camera Module 4K30 fps Industrial Camera IMX678 Modules

8.29 Megapixel USB Camera Module 4K30 fps Industrial Camera IMX678 Modules
shared：

Features
8.29 Megapixel

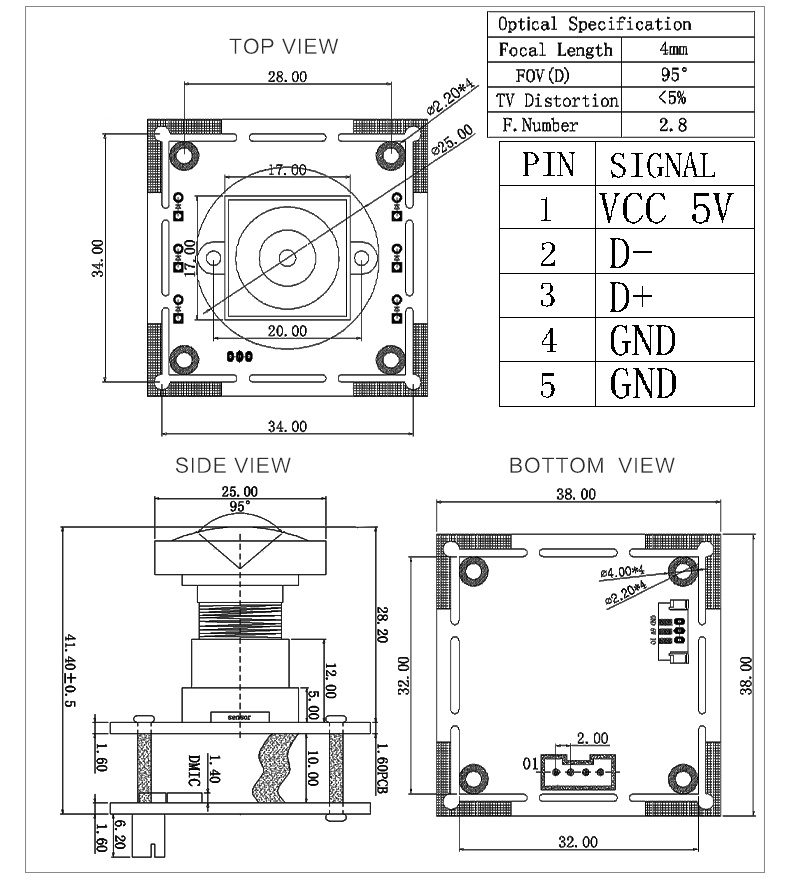

Size / Dimension
38mmx38mmx40.5mm
Description
USB camera module
Product model
HBVCAM-4K2353 V11
Photosensitive chip
IMX678
Format
MJPG/YUY2
Resolution
1920 *1080P30fps
Focusing method
manual focusing
Output
USB 2.0
Working temperature
-20 ° C~70 ° C
Field of view angle/focal length
95 °/3.0mm
