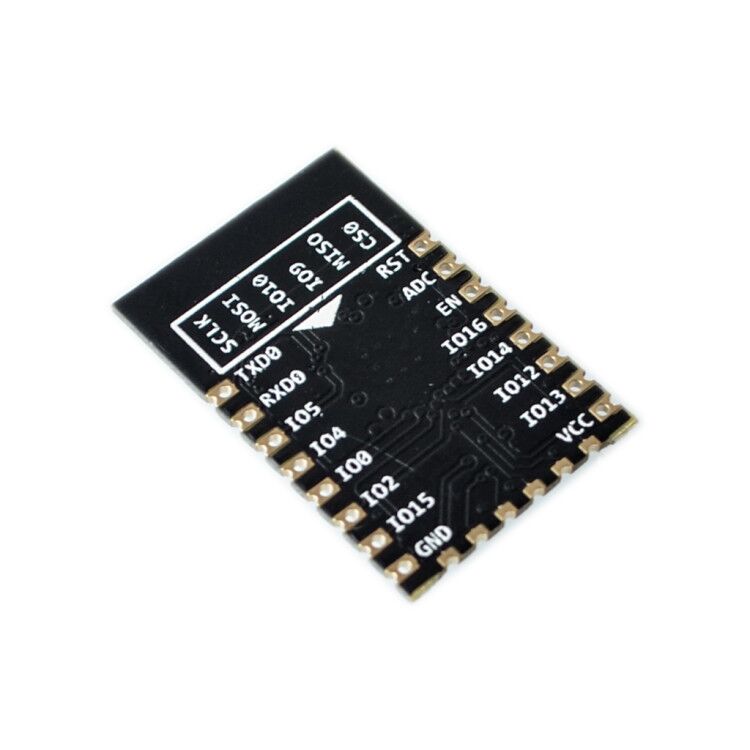

Smart Electronics New version ESP-12E (replace ESP-12) ESP8266 remote serial Port WIFI wireless module ESP8266-12E ESP12E

New version ESP-12E (replace ESP-12) ESP8266 remote serial Port WIFI wireless module ESP8266-12E ESP12E

ESP8266-12E Is an enhanced version ESP8266-12 , improve the external circuit, enhanced impedance signal output is better, whether it is stable or anti-jamming capability , have been greatly improved ! Before selecting a user for ESP-12 's , it does not matter even if the product has been made , enhanced version is fully compatible with previous firmware pin has added the ESP-12 on the basis of six IO ports , SPI mouth leads , develop more convenient, application more extensive !
shared：

ESP8266-12E  Is an enhanced version ESP8266-12 , improve the external circuit, enhanced impedance
signal output is better, whether it is stable or anti-jamming capability , have been greatly improved !
Before selecting a user for ESP-12 's , it does not matter even if the product has been made , enhanced version
is fully compatible with previous firmware pin has added the ESP-12 on the basis of six IO ports , SPI mouth leads ,
develop more convenient, application more extensive !


Description:

Model:ESP8266-12
ISM 2.4GHz
PA +25dBm
802.11b/g/n


Warnings:

1.This module requires a 3.3 volt supply for VCC, and 3.3V logic.
2.It is not 5V tolant,Connect RX or TX on 5V for ardu will destroy this module.
3.You must use a logic level converter, or a 3.3V for ardu

4.The 3.3V supply on the for ardu has inadequate current capabilit to power this module.

5.You must provide a separate,higher 3.3V supply(about 300mA or better)
