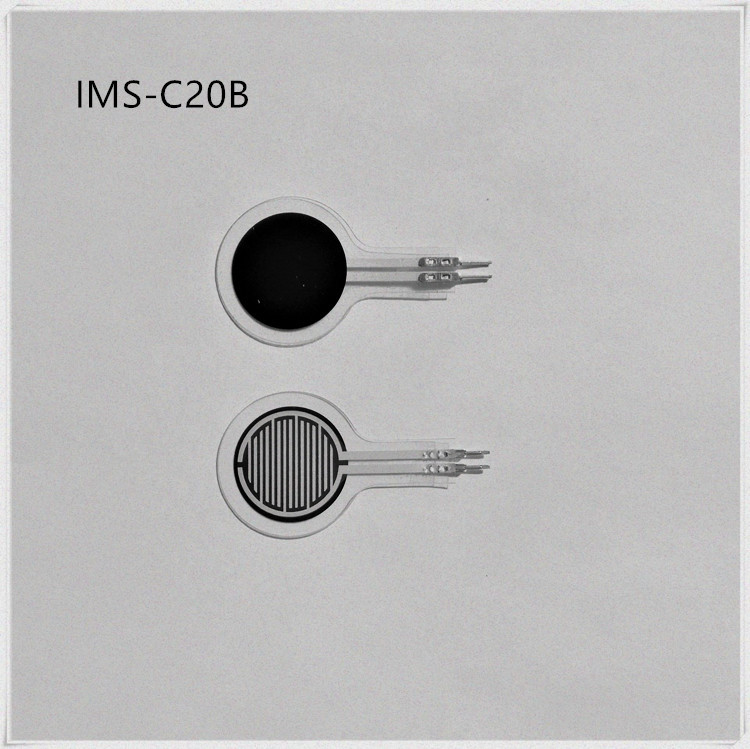

Smart Electronics Resistive thin film pressure sensor comb type B structure flexible sensor

Resistive thin film pressure sensor comb type B structure flexible sensor

Terminal type

A2 male terminal
Female terminal
Female terminal plastic shell
A1 male terminal

Range

1kg small force
10Kg middle force
50kg vigorously
100g micro force
shared：


Resistive thin film pressure sensor-single point circular diameter
20mm comb type B structure flexible sensor

Specification
Model: IMS-C20 Sensor type: single point Sensor shape: round Appearance diameter (width): 26mm Induction zone diameter: 20mm Sensor length: 126mm Wire length: 100mm Wire material width/spacing: silver/1.5mm/2.54mm Sensor thickness: ≤0.25mm Range: 50g/cm2-100kg/cm2 Terminal type: no terminal/male terminal/female terminal/terminal shell Typical application performance Power supply: Type+5V, Type 5ma(Max) Sensor type: Piezoresistive Service life: ≥100000 times Linearity error: ≤±3% Repeatability: full scale≤±2.5% Hysteresis: full scale≤±4.5% Drift: ≤5%/logarithmic time range Response time: ≤5uS Operating temperature range: -40°C-60°C Temperature drift: ≤0.2%℃

Opotions


Terminal type

A2 male terminal Female terminal Female terminal plastic shell A1 male terminal

Range

1kg small force 10Kg middle force 50kg vigorously 100g micro force
