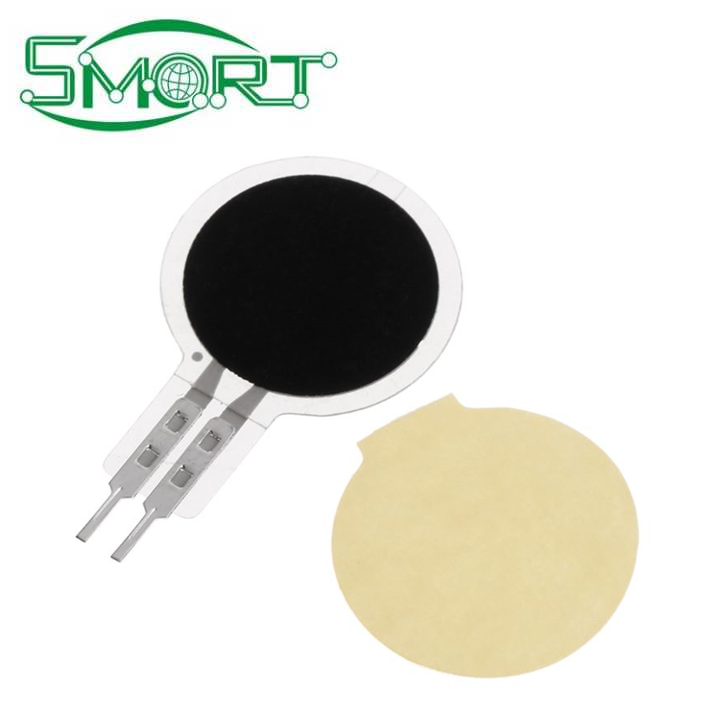

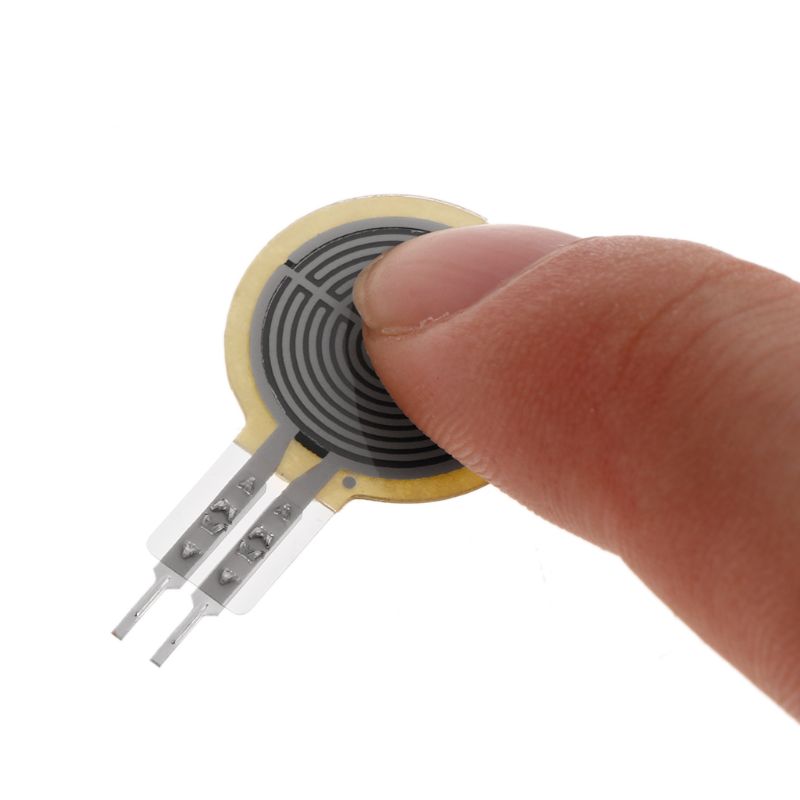

Force Sensor RP-C18.3-ST Flexible Thin Film Pressure Sensor Intelligent 20g-6kg

The flexible sensor has the characteristics of flexible ultra-thin, ultra-low power consumption and extreme speed response, etc.
Small size, this flexible pressure sensor is based on new nanometer pressure-sensitive materials ​supplemented by ultra-thin film substrate.
This pressure sensor has the characteristic of high stability, high consistency.
Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure.
shared：



Features:
The flexible sensor has the characteristics of flexible ultra-thin, ultra-low power consumption and
extreme speed response, etc.
Small size, this flexible pressure sensor is based on new nanometer pressure-sensitive materials
supplemented by ultra-thin film substrate.
This pressure sensor has the characteristic of high stability, high consistency.
Highly sensitive flexible nanometer materials can realize highly sensitive detection of pressure.
When sensor detects outside pressure, the resistance of sensor will change.

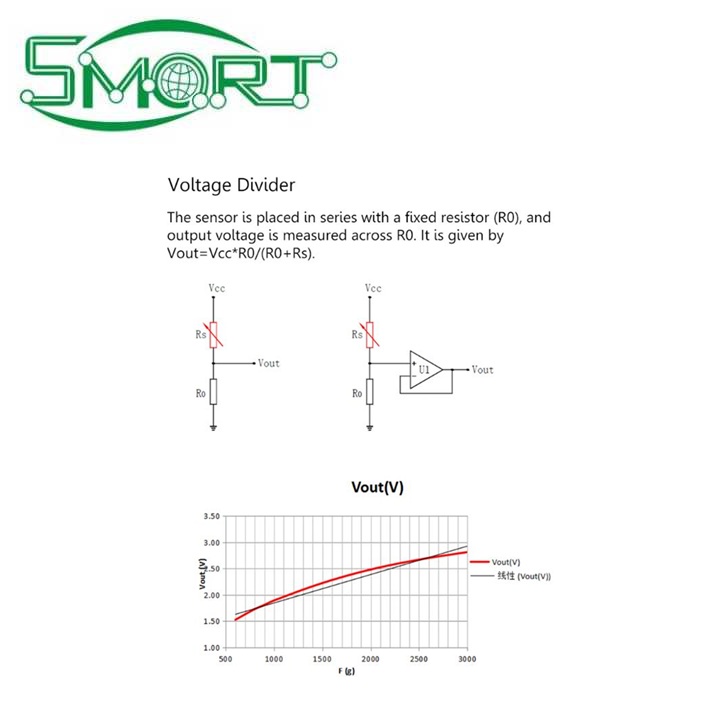

Pressure signal can be converted into a corresponding electrical signal output using simple circuit.

Specifications:
Model: RP-C18.3-ST
Manufacturing process: thin film
Output signal: analog
Pressure induction range: 20g-6kg
Trigger: 20 g, triggered, default Resistance <200 kΩ
Thickness: 0.4mm
Not trigger resistance: > 10MΩ
Activation time: <0.01s
Delay: +10%, (RF+-RF-)/FR+,1000g force
Response time: < 10ms
Size: 3.2 x 1.8cm / 1.25 x 0.7in

Note: Detailed specifications are available, please contact us if necessary

Package included:
1 x Pressure Sensor
