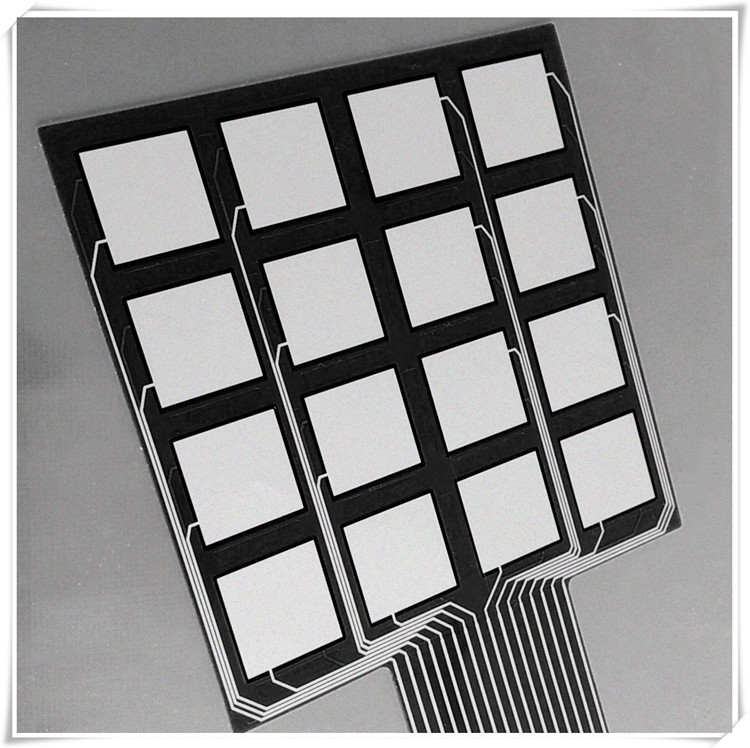

Thin film pressure sensor, Square 16 nodes side length 20 mm flexible resistive motion sensor

The IMM0092 of Idong Film Electronics is a member of the single-node sensor family. Although IMM092 has 16 nodes, because IMM00092 has 32 lines of output, each node has 2 lines of output, and the 16 nodes are independent of each other. They are very reliable piezoresistive sensors. When the pressure (pressure) applied to the effective area of the sensor increases, the output resistance of the sensor decreases. Single-point sensors can be measured using a multimeter or customer's own circuit.
shared：

Product Information
The IMM0092 of Idong Film Electronics is a member of the single-node sensor family.
Although IMM092 has 16 nodes, because IMM00092 has 32 lines of output, each node
has 2 lines of output, and the 16 nodes are independent of each other. They are very
reliable piezoresistive sensors. When the pressure (pressure) applied to the effective area
of the sensor increases, the output resistance of the sensor decreases. Single-point sensors
can be measured using a multimeter or customer's own circuit.


Feature
Value
Note
Minimum force
50g
the minimum force value is different for different ranges, this refers to the small force range sensor
Sensor range
1kg
Pressure resolution
analog output, continuous

Pressure repeatability
10%

No excitation resistance
2 Mega Ohms

Sensor thickness
0.18mm

Static resistance
2 Mega ohms
Unstressed, flat, not bent
Sensor rise time
 <5ms

Long-term drift (creep)
1<5% per log(time)

Use times (life cycle)
1 million times

Working temperature
-40℃~60 ℃

Working humidity
5% ~ 95%

Parasitic capacitance
300P
single node
Substrate type
polyester
Thickness  0.075mm
Uniformity
+-25%


Purchase options

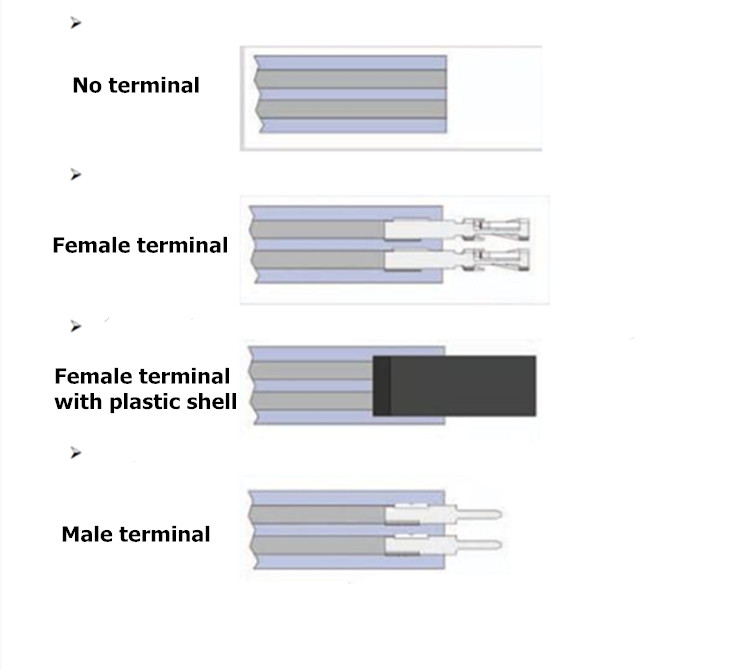

1. A2 male terminal 2. Female terminal 3. Female terminal + plastic shell
