Smart Electronics Raspberry Pi RP2350A Development Board RP2350-One Microcontroller MicroPython Mainboard

Raspberry Pi RP2350A Development Board RP2350-One Microcontroller MicroPython Mainboard
shared：

Smart Electronics Raspberry Pi RP2350A Development Board RP2350-One Microcontroller MicroPython Mainboard

Product Features

1. Incorporates the RP2350A microcontroller chip developed by Raspberry Pi

2. Features a unique dual-core, dual-architecture design with dual-core ARM Cortex-M33 processors and

dual-core Hazard 3 RISC-V

processors, operating at up to 150MHz
3. Includes 520KB of SRAM and 4MB of on-chip Flash memory

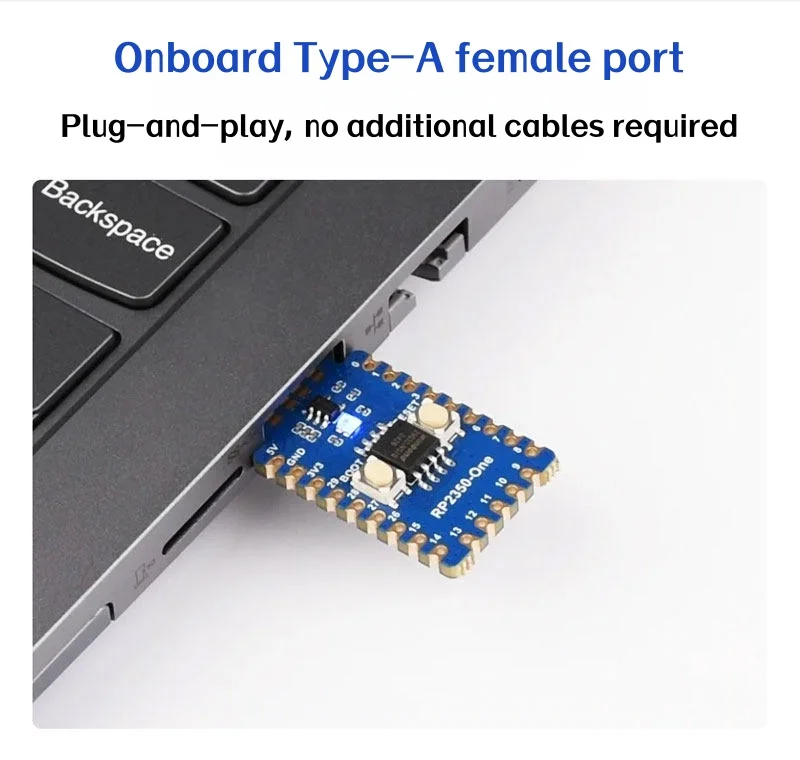

4. Onboard PCB Type-A male connector enables true plug-and-play functionality without cable concerns.

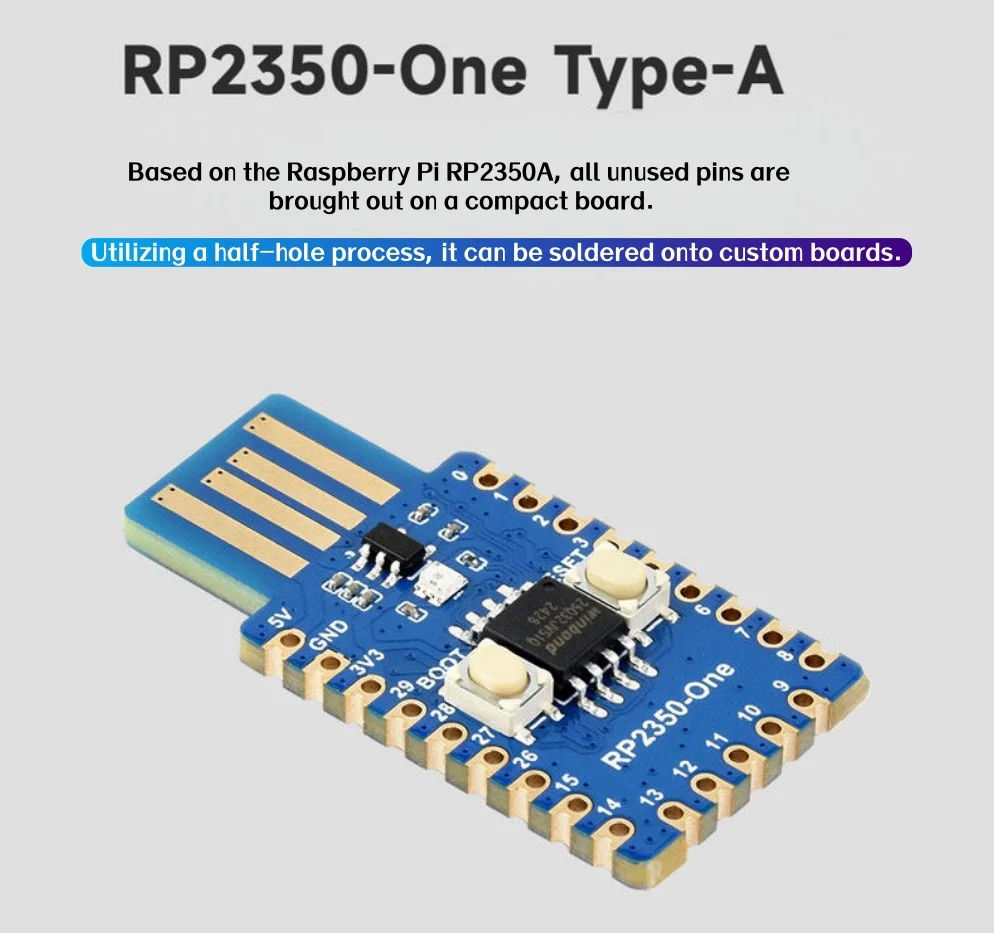

Stamp-pin design allows

direct soldering onto user-designed base boards
5. Supports USB 1.1 host and device modes
6. Supports low-power sleep and hibernation modes
7. USB-recognized as mass storage device for drag-and-drop program downloads

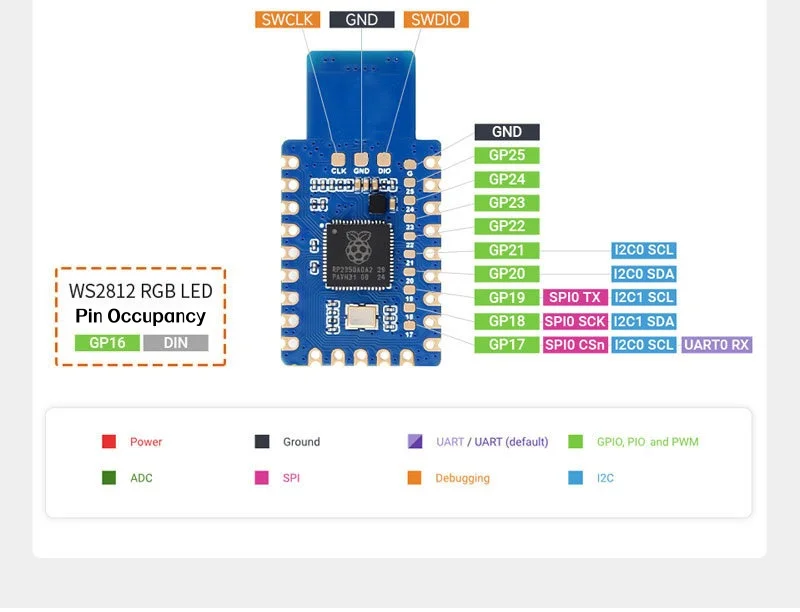

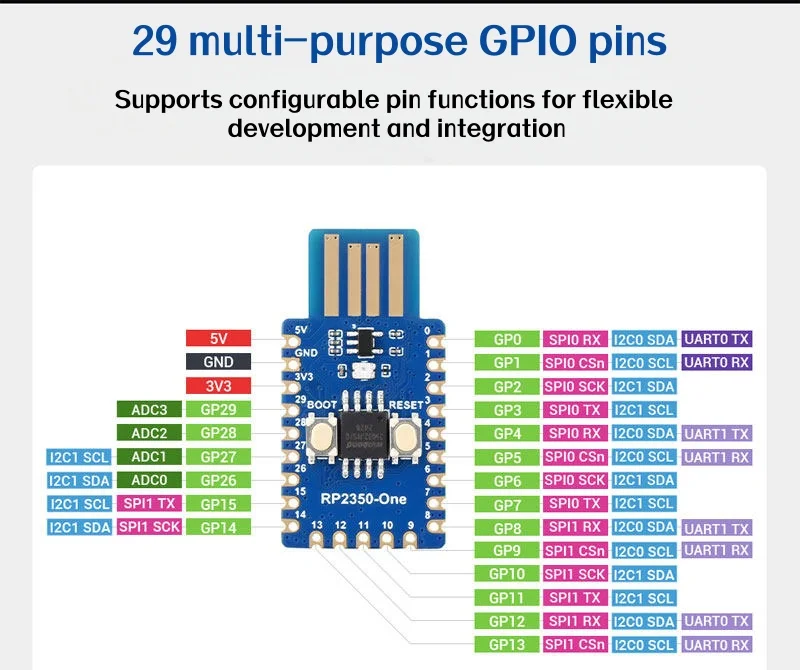

8. 29 GPIO pins exposed (20 accessible via header pins, remaining solder-only)
9. 2 SPI, 2 I²C, 2 UART, 4 12-bit ADCs, 16 controllable PWM channels
10. Precise on-chip clock and timers
11. Temperature sensor
12. On-chip accelerated floating-point library
13. 12 programmable I/O (PIO) state machines for custom peripheral support
