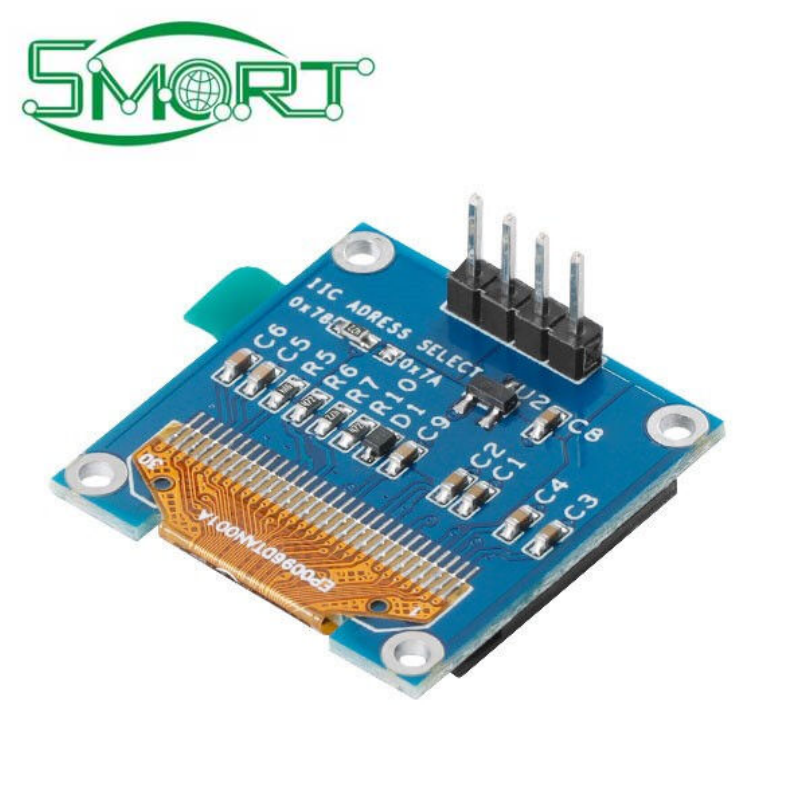

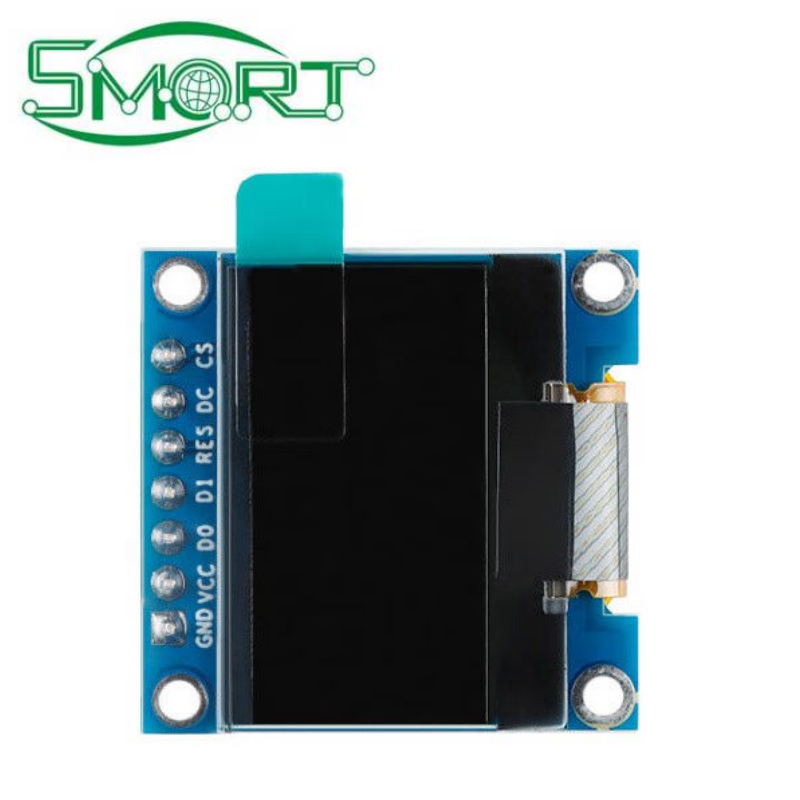

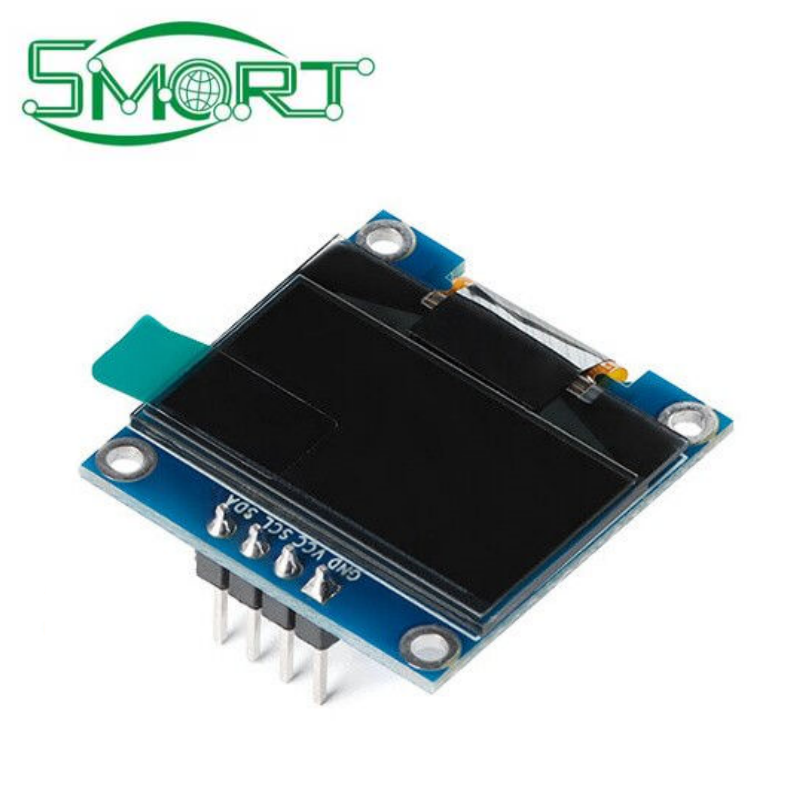

0.96 Inch LED Display Module OLED With 12864 ICC Interface Module

shared：
Product Name
0.96 inch OLED display module
Material
PM OLED
Resolution
128 * 64
Working voltage
3.3V
Control chip
SSD1306
Display area
21.744 *10.864 (mm)
Panel size
26.70*19.26*14 (mm)
Pixel spacing
0.17 * 0.17 (mm)
Pixel size
0.154 *0.154 9(mm)
Number of pins
30 pins (0.7mm spacing welded type)
Working temperature:
-40~70°C
Interface Definition
