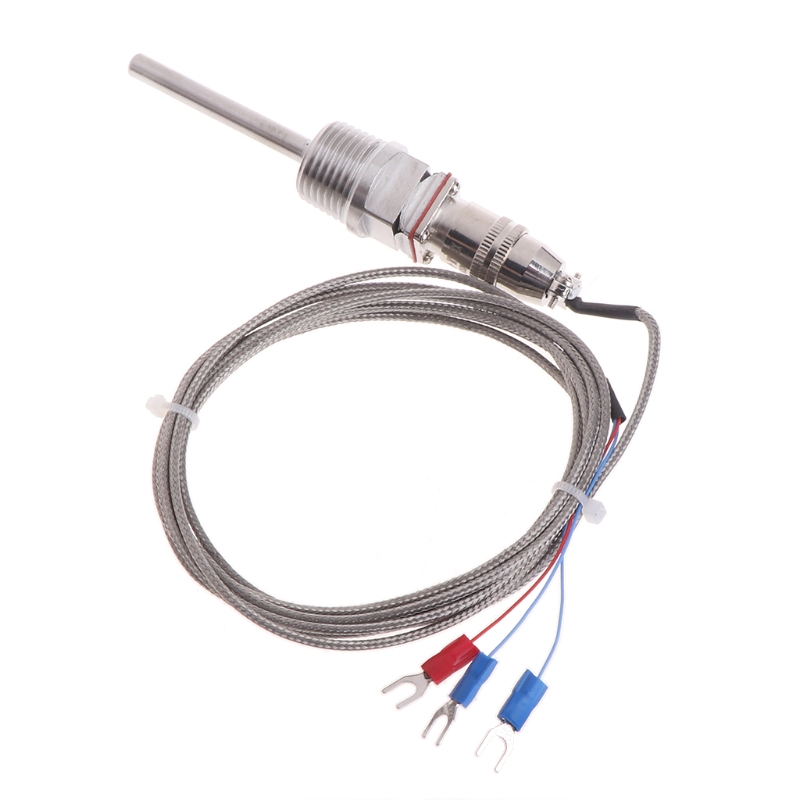

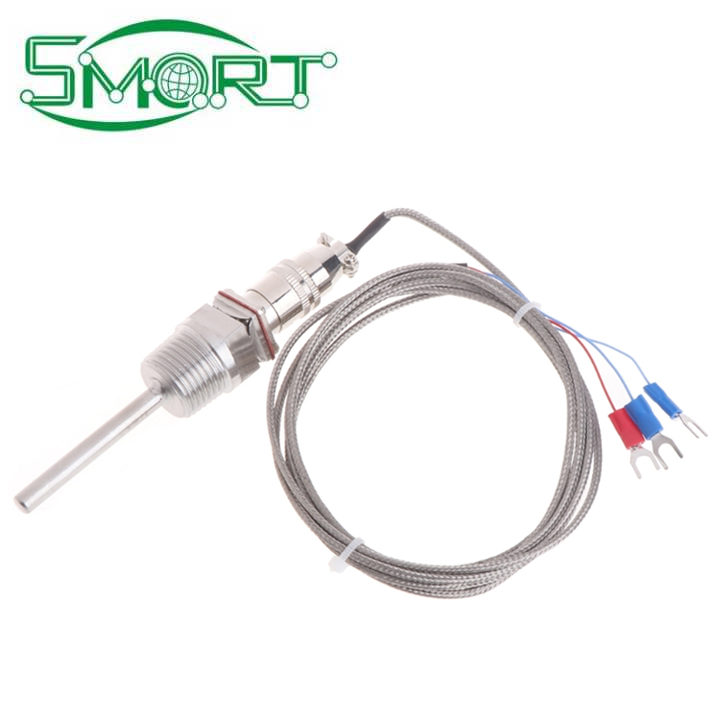

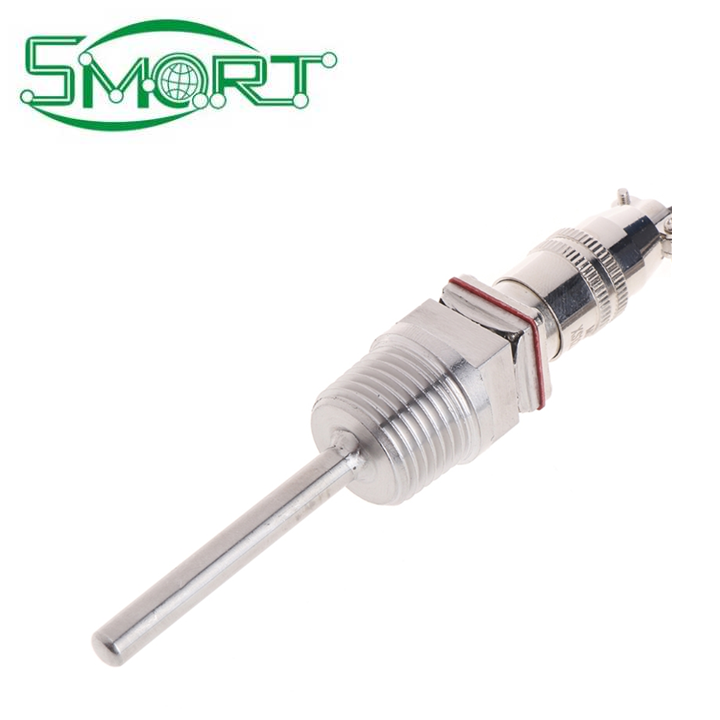

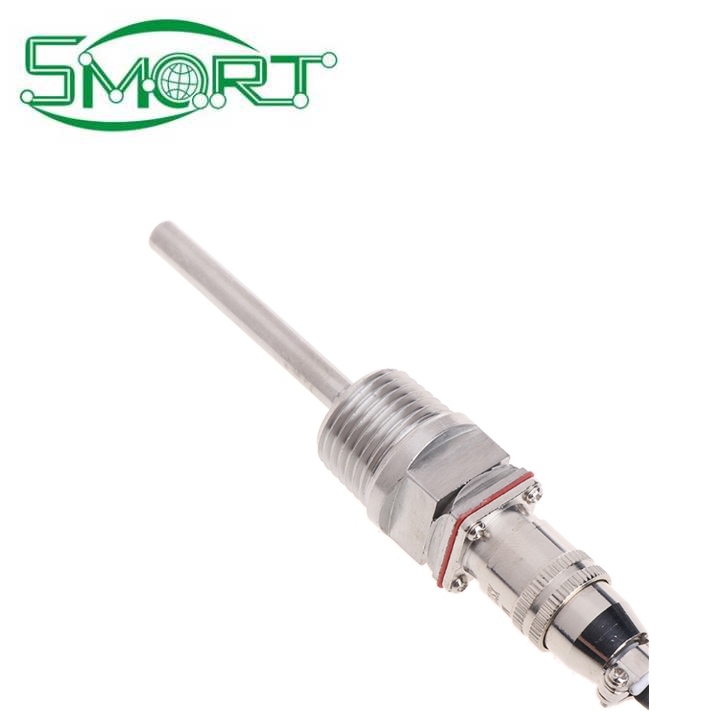

Smart Electronics RTD Pt100 Temperature Sensor Probe Length 5cm 1/2" NPT Thread w/ Detachable Connector

RTD Pt100 Temperature Sensor Probe Length 5cm 1/2" NPT Thread w/ Detachable Connector

Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item
shared：

Specifications:

TypeRTD PT100 (Thin Film) Class A
Operating Temperature-50~400 ° ( -58~752°)
Terminal contact3EA (applied 3wire:A, B, b)
Probe Length50mm (1.97")
Diameter6mm (0.24")
Thread Size1/2" NPT
Probe MaterialStainless Steel 304
Wire MaterialTinned Copper
Cable Length2m (6.6ft)

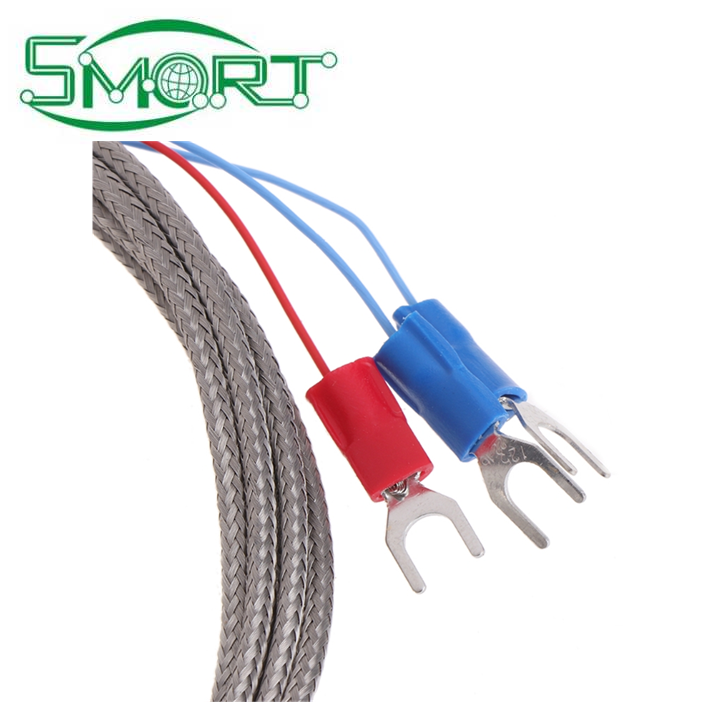

Cable Sheath3-wire Fiberglass braided with Stainless Steel Overbraided
ConnectorDetachable 4-pin Connector







Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

No Retail Package
Package Includes:
1 x Pt100 Temperature Sensor
