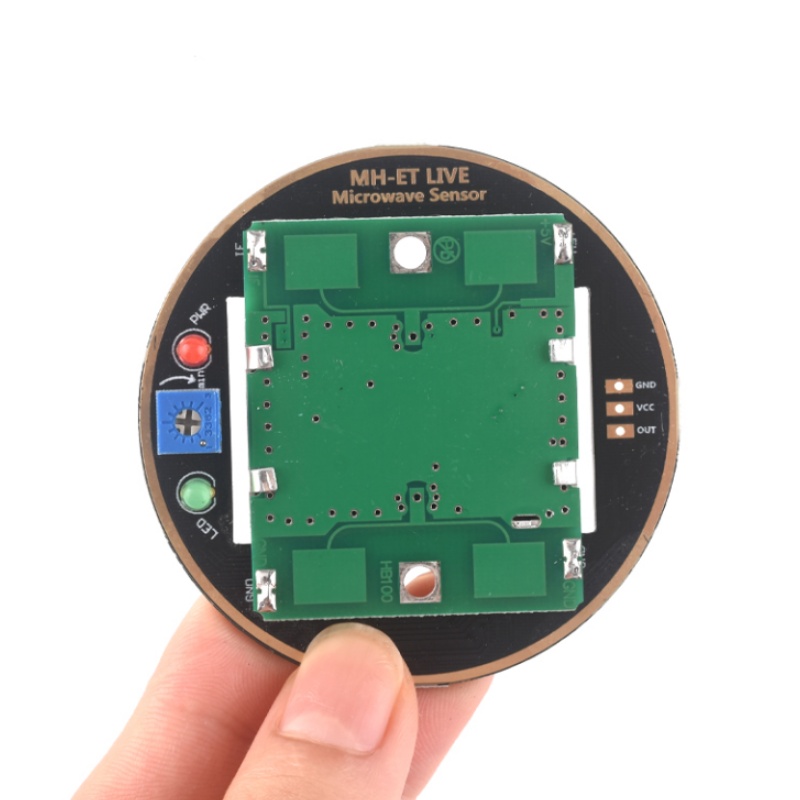

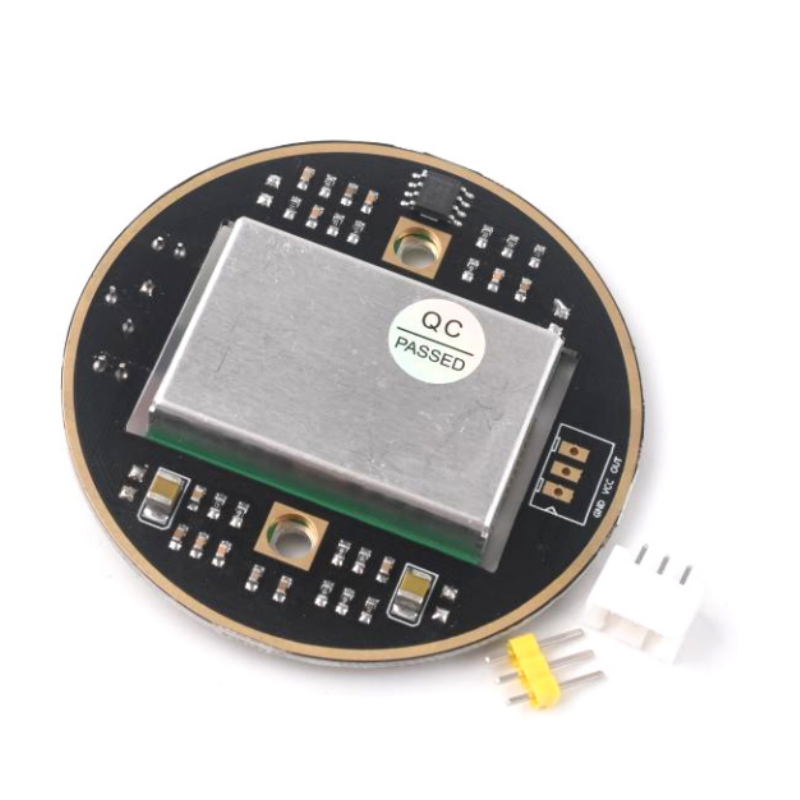

MH-ET LIVE HB100 X 10.525GHz Microwave Sensor 2-16M Doppler Radar Human Body Induction Switch Module

Products > Sensor Module > MH-ET LIVE HB100 X 10.525GHz Microwave Sensor 2-16M Doppler Radar Human Body Induction Switch Module

MH-ET LIVE HB100 X 10.525GHz Microwave Sensor 2-16M Doppler Radar Human Body Induction Switch Module

shared：

Purchase Notes
This product link contains Three SKU. The price of each SKU is different. Please specify which
SKU you need, and then ask the salesman for a quotation. （Page price for reference only）

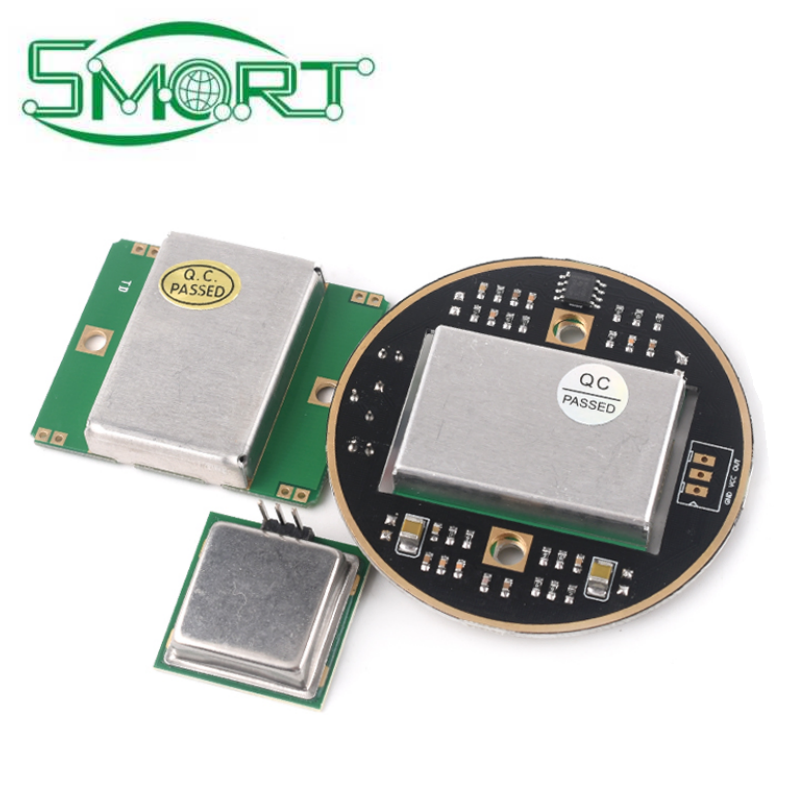

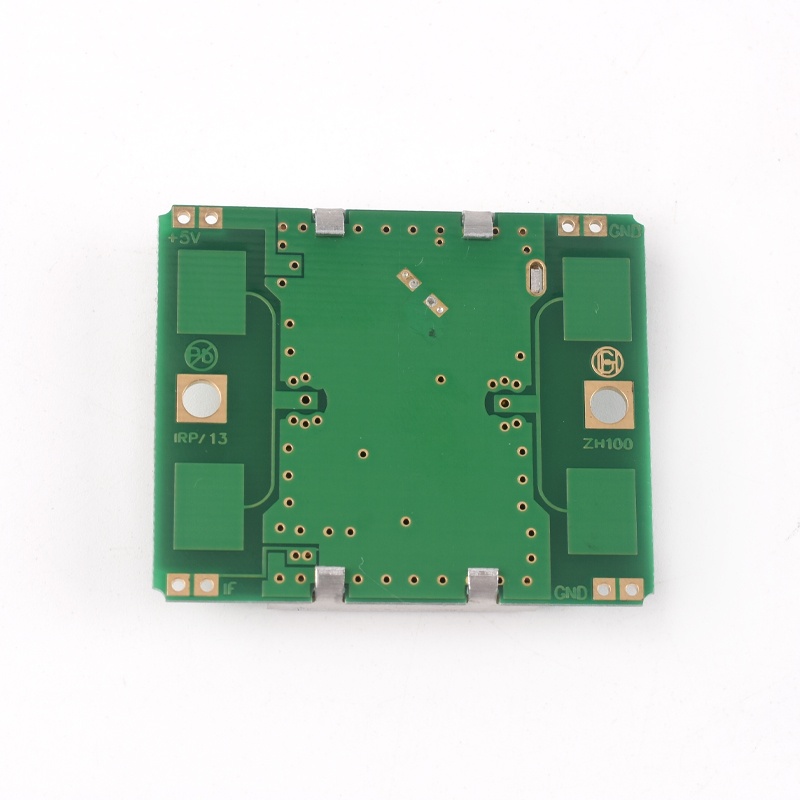

1.HB100 microwave module 10.525G
2.HB100X microwave module 10.525G
3.CDM324 high-frequency microwave module 24G

Microwave Doppler Human Body Sensing Module HB100 Wireless Radar Mobile Sensing Sensor 24G CDM324

Launch (HB100/HB100X)
01. Transmission frequency	10.525CHZ
02. Frequency setting accuracy	3MHz
03. Output power (minimum)	13 dBm EIRP
04. Working voltage	5V ± 0.25V
05. Working current (CW)	60mA max37 ma typical
06. Harmonic emission	<-10dBm
07. Average current (5% DC)	2 mA typ
08. Pulse width (Min)	5uSec

Received (HB100/HB100X)
01. Sensitivity	(10 dB S/Nratio) 3Hz to 80Hz
02. Bandwidth	-86dBm
03. Antenna gain	8dBi
04. Vertical plane 3dB beam width	36 degrees
05. Horizontal 3dB beam width	72 degrees
