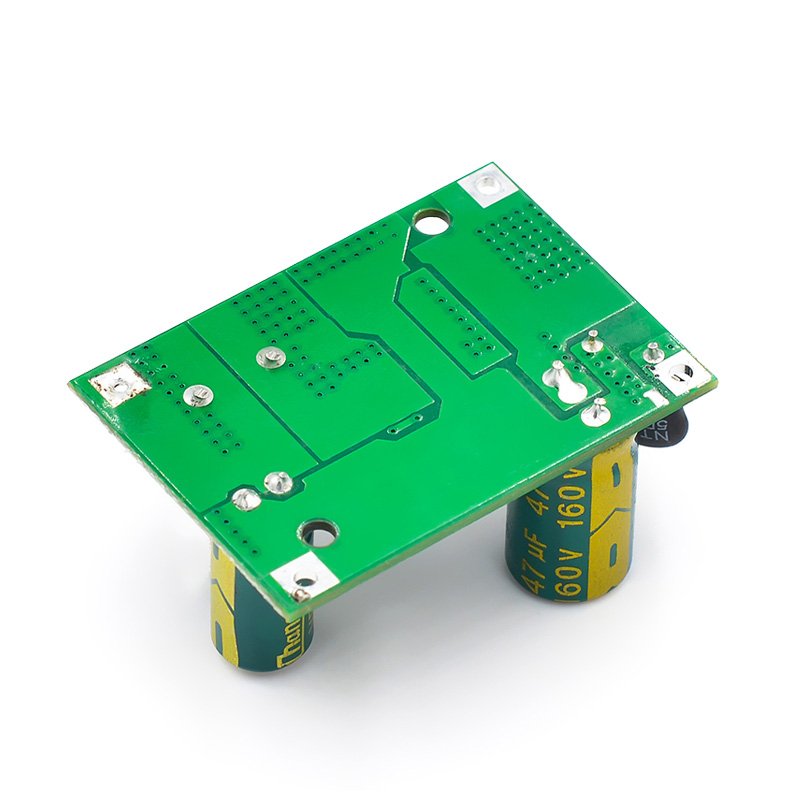

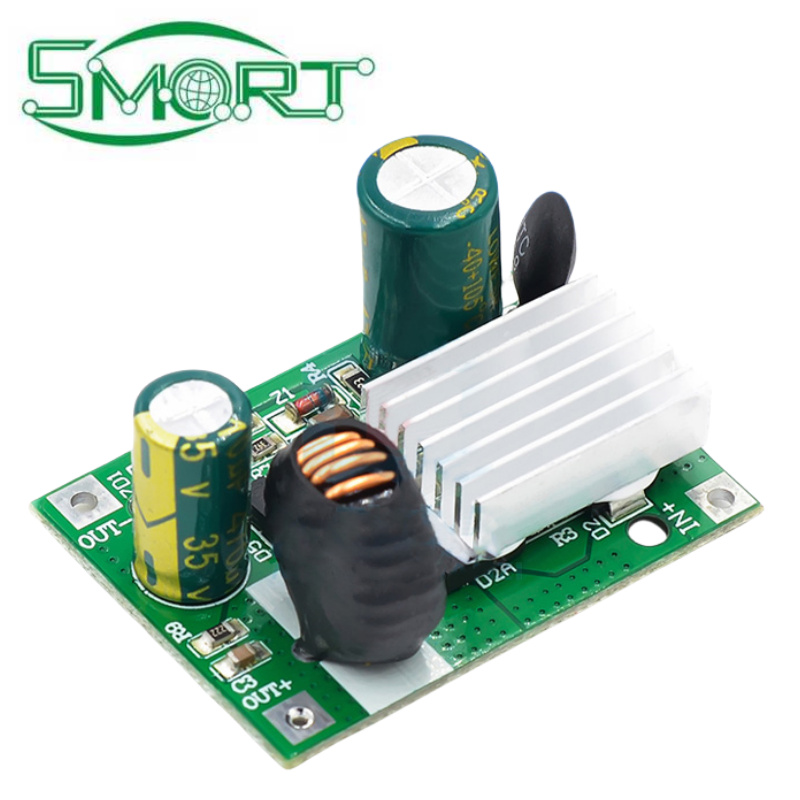

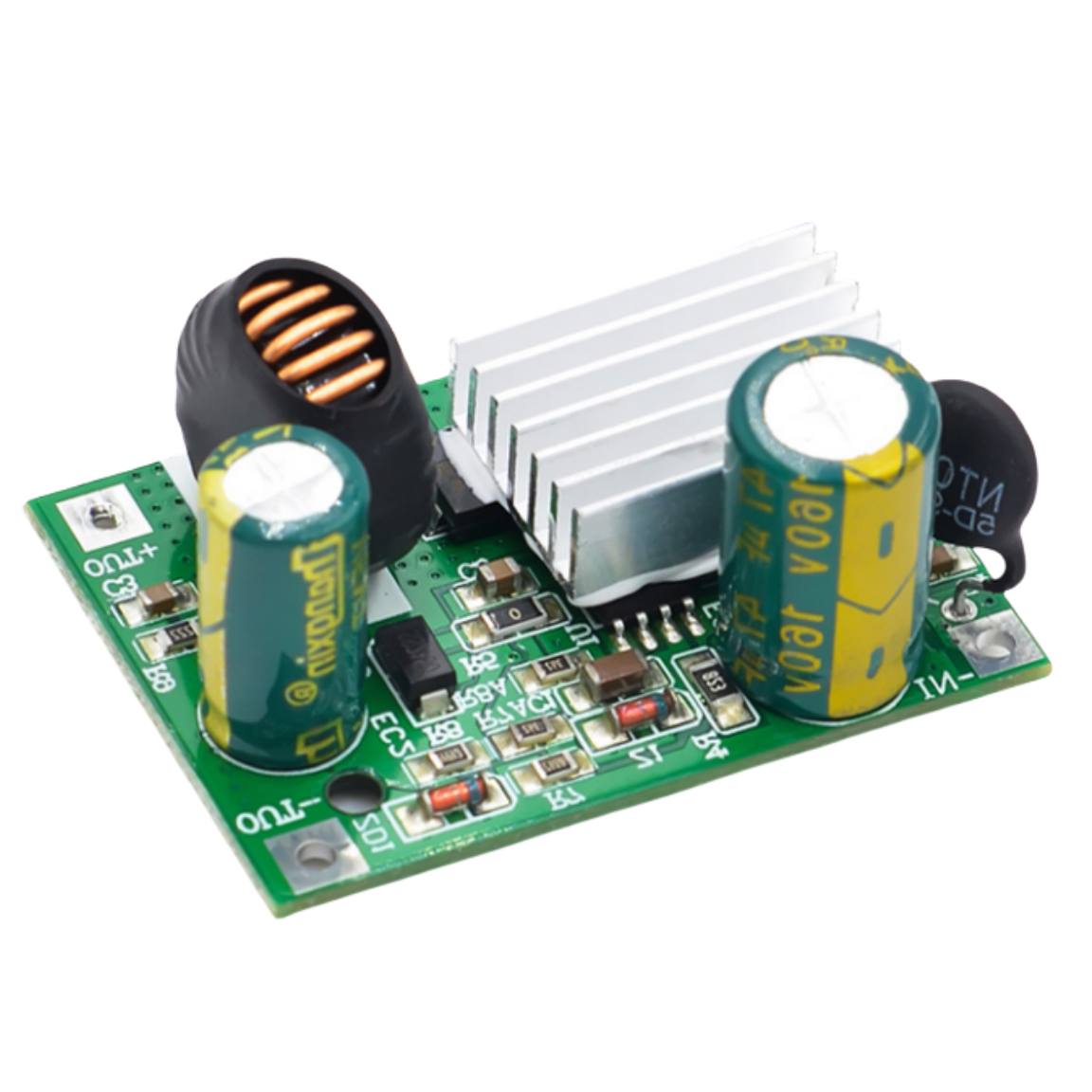

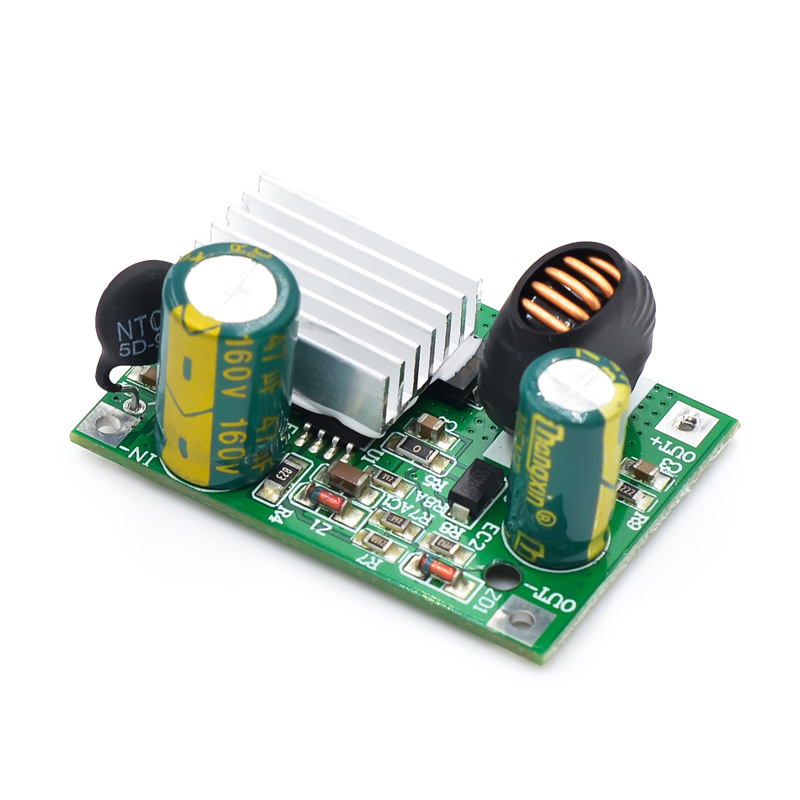

Smart Electronics 9-120V 100V 96V 84V 72V 24V Wide Voltage Input to 5V 12V High Current 3A DC Step-down Power Module

9-120V 100V 96V 84V 72V 24V Wide Voltage Input to 5V 12V High Current 3A DC Step-down Power Module
shared：
Features:
Wide input voltage: 9V-120V

Minimum voltage difference between input voltage and output voltage is 4V (DC9V-120V for 5V output,

DC16V-120V for 12V output).

Maximum output current 3A (i.e. constant current value 3A, when the customized voltage is greater than 12V,

the output current is less than 3A, the power is not recommended to exceed 30W)

Typical operating frequency: 140KHz Typical operating frequency: 140KHz High efficiency: up to 95% (the smaller the pressure difference, the higher the efficiency) Light load frequency reduction Improve light load efficiency Low standby current Built-in over-temperature, over-current and short-circuit protection. Built-in soft start Constant voltage and constant current output Operating temperature: industrial grade (-40℃ to +85℃) Module volume:40*30*19mm(L*W*H)
