Smart Electronics CC1101 Intelligent Industrial Wireless RF Communication Module SPI Transceiver Module 868MHz

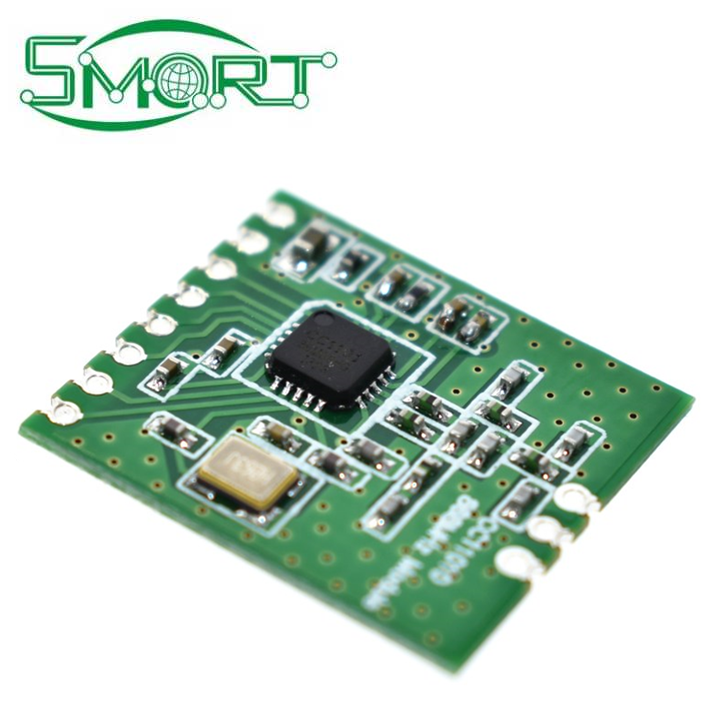

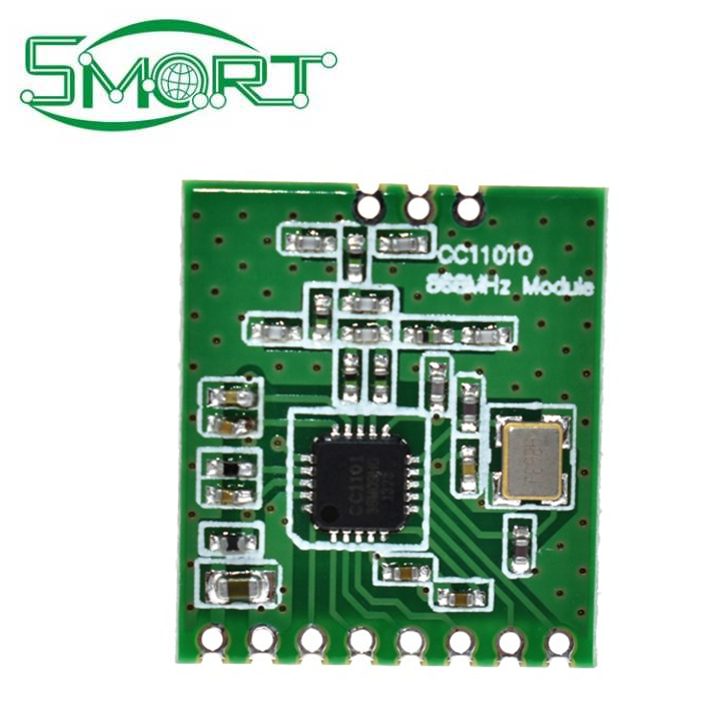

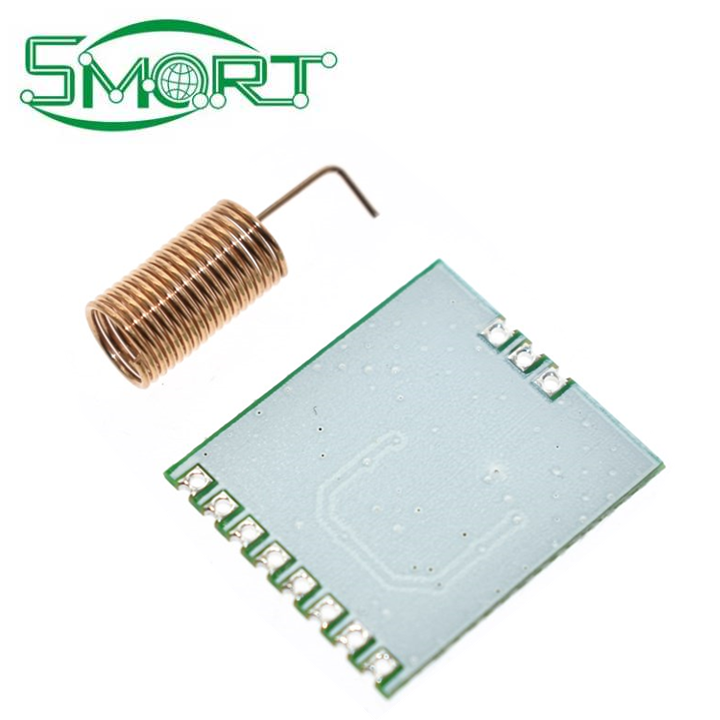

CC1101 Intelligent Industrial Wireless RF Communication Module SPI Transceiver Module 868MHz

Features:
1.Low power UHF wireless transceivers @ 868MHZ
2.Support FSK , GFSK , ASK / OOK and MSK
3.Configurable data rate 1.2K to 500kps
4.Two 64 bytes FIFO for TX & RX buffer
5.Packet handling including address recognition
6.Support Wake-on-radio
7.Support Clear Channel Assessment（Listen-before-talk )
8.RSSI Output &Link Quality Indictor
9.SPI Interface
10.Wide Operating Voltage 1.8-3.6V
shared：


Features:
1.Low power UHF wireless transceivers @ 868MHZ 2.Support FSK , GFSK , ASK / OOK and MSK 3.Configurable data rate 1.2K to 500kps 4.Two 64 bytes FIFO for TX & RX buffer 5.Packet handling including address recognition 6.Support Wake-on-radio 7.Support Clear Channel Assessment（Listen-before-talk ) 8.RSSI Output &Link Quality Indictor 9.SPI Interface 10.Wide Operating Voltage 1.8-3.6V

Applications

1. AMR – Automatic Meter Reading 2.Two-way RKE – Remote Keyless Entry 3. Low power telemetry 4. Home and building automation 5.Wireless alarm and security systems 6.Industrial monitoring and control 7. Wireless sensor networks
