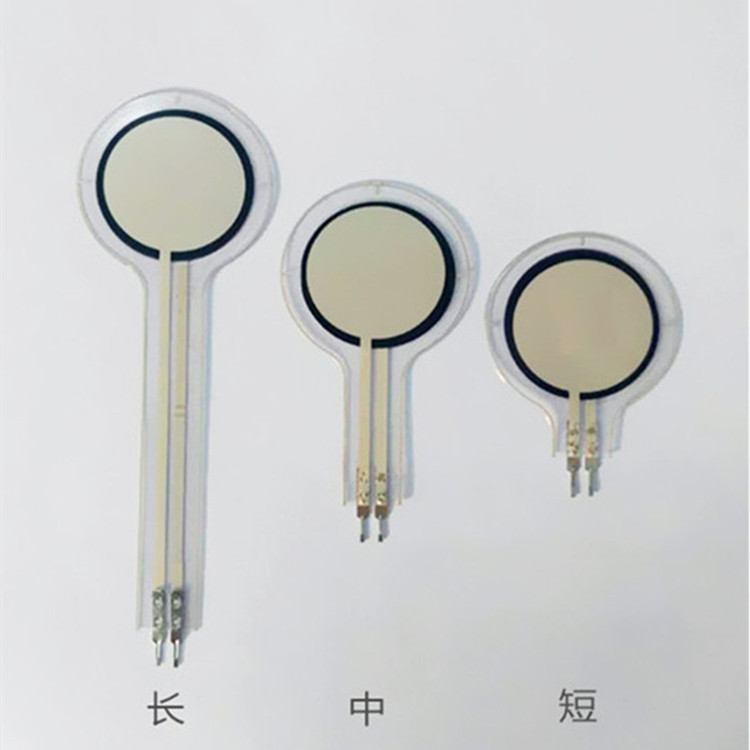

Smart Electronics D2027 piezoresistive flexible film pressure sensor foot pressure force measurement customization

D2027 piezoresistive flexible film pressure sensor foot pressure force measurement customization

Terminal type
Male terminal
Female terminal

Pressure range
500g 2kg 5kg 10kg 20kg 40kg 60kg 100kg
shared：



Terminal type
Male terminal
Female terminal

Pressure range
500g 2kg 5kg 10kg 20kg 40kg 60kg 100kg



Output Model Category: Analog Sensor
Sensor category: Pressure sensitive and force sensitive sensors
Material: polymer
Model: D2027
Color: transparent substrate
Applicable scene: Stress test
Working current: 0.01A
Weight: 1g



 Smart Electronics D2027 piezoresistive flexible film pressure sensor foot pressure force measurement customization
