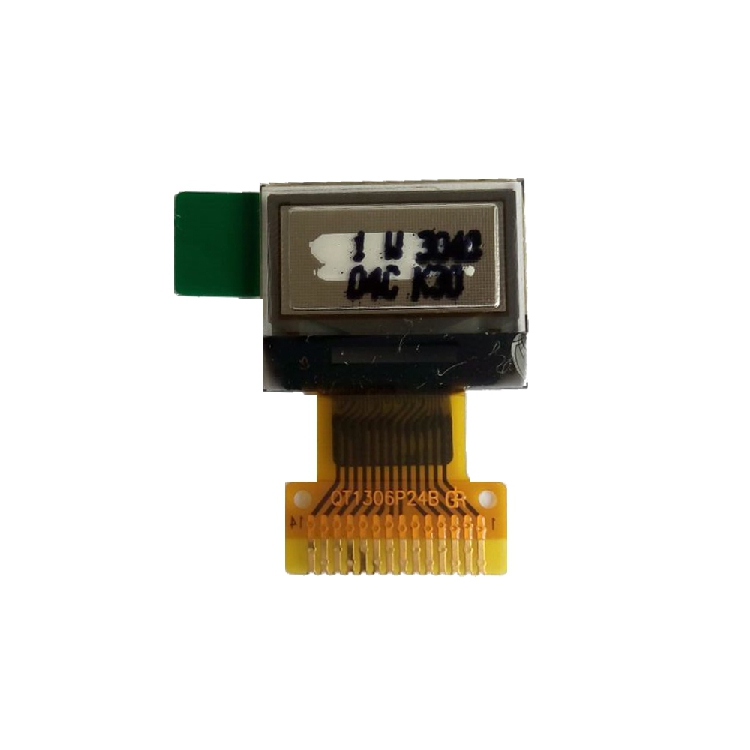

0.49 inch OLED LCD screen 64*32 dot matrix SSD1306 driver 14Pin IIC interface

Feature
Size: 0.49 inch
Dot matrix: 64*32
Monochrome: white, blue
Hardware interface: I2C (14 feet)
Driver chip: SSD1306/SH1106
Drive voltage: 3.3V
Working temperature: -40℃-+70℃;
Storage temperature: -40℃-+85℃;
Product features: self-luminous, high brightness, high contrast, ultra-thin, full viewing angle, visible under sunlight, wide temperature, low power consumption, fast response speed
shared：


Feature
Size: 0.49 inch Dot matrix: 64*32 Monochrome: white, blue Hardware interface: I2C (14 feet) Driver chip: SSD1306/SH1106 Drive voltage: 3.3V Working temperature: -40℃-+70℃; Storage temperature: -40℃-+85℃; Product features: self-luminous, high brightness, high contrast, ultra-thin, full viewing angle, visible under sunlight,
wide temperature, low power consumption, fast response speed
