Smart Electronics Wireless remote control telescopic sliding gate EV1527 learning code alarm 433Mhz module

Wireless remote control telescopic sliding gate EV1527 learning code alarm 433Mhz module
shared：

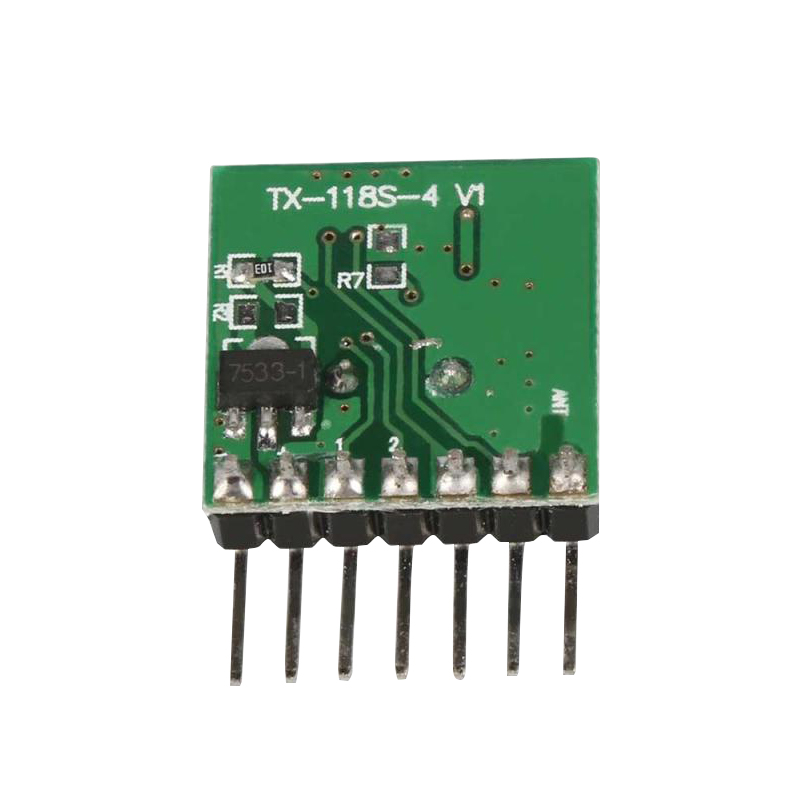

High performance wide voltage transmitter module (with coding)

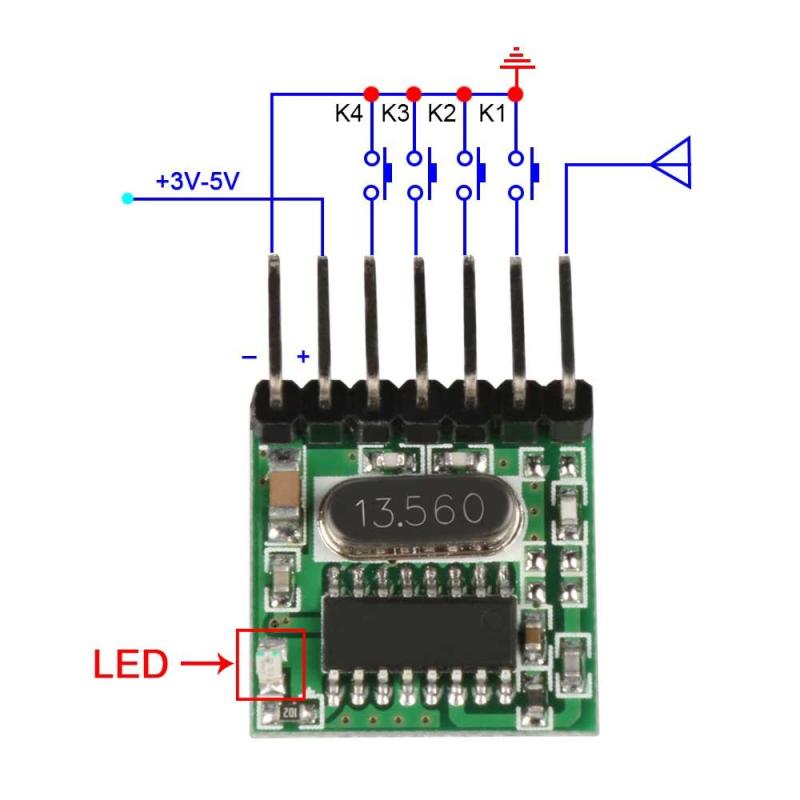

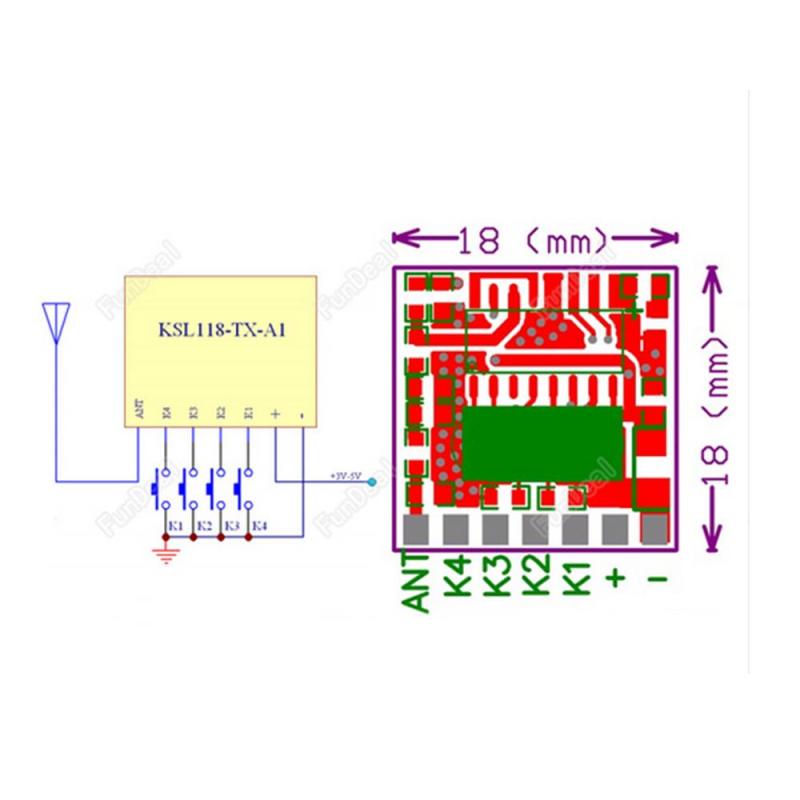

Transmit power:11dbm Distance:200M Emission current:10MA Standby current: less than 3UA Transmission rate: maximum 10KB/S Transmission frequency deviation: +/-7.5KHZ/narrowband transmission Modulation method: ASK Working voltage: DC 3V-24V Optional fixed encoding type: PT2262/EV1527/HT6P20B Customizable special coding: MCU type Standby current:<3UA Key data: A, B, C, D, a total of 4 groups of inputs, which can be combined into 15 groups. Each module has an independent ID address code The four key codes of all modules K1-K4 are the same.

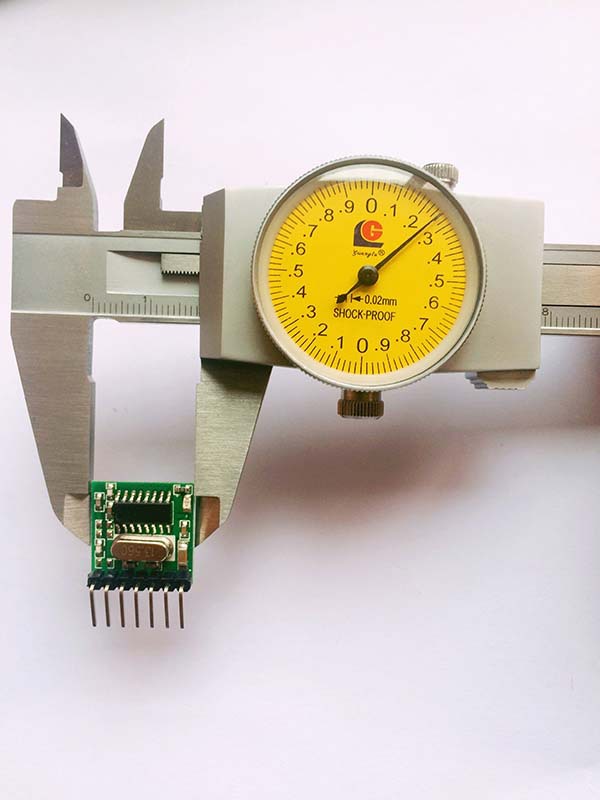

Single module weight: 2.06g
