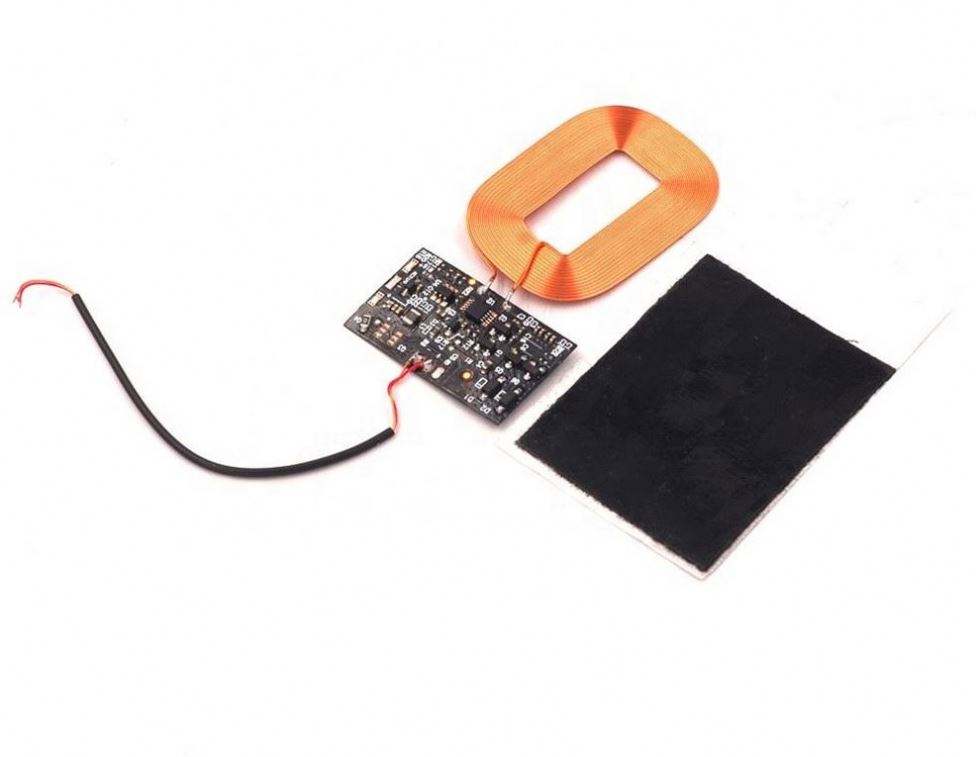

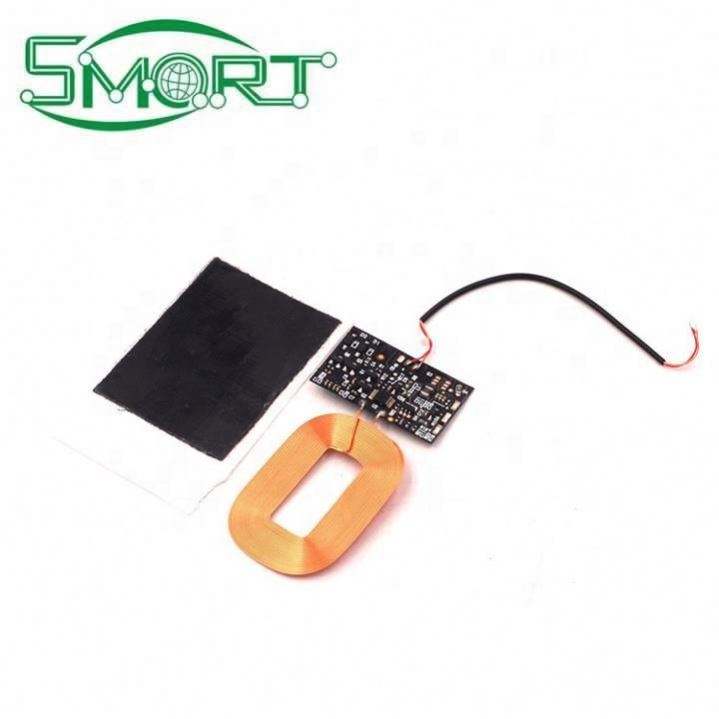

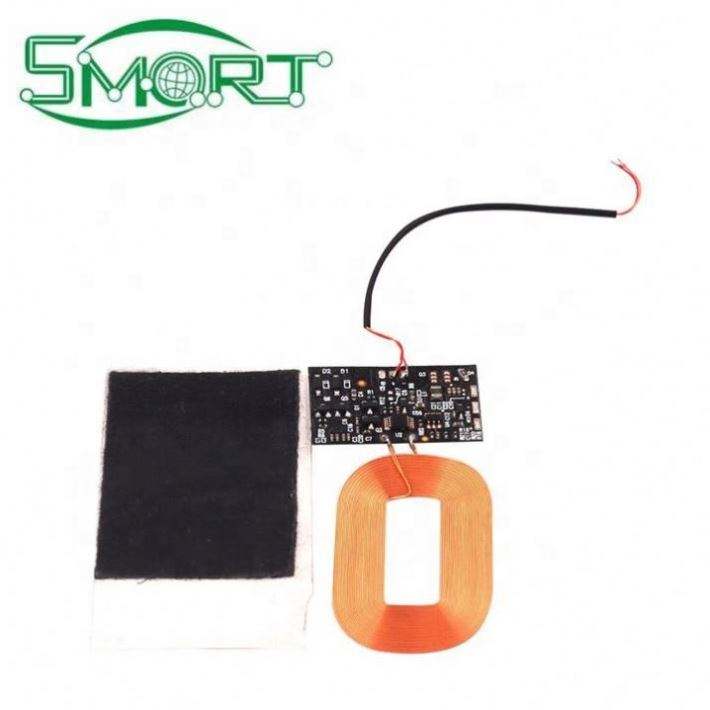

Smart Eletronics Universal Wireless Charging PCBA Coil Charging Pcb Circuit Board Qi Wireless charger receiver module

Universal Wireless Charging PCBA Coil Charging Pcb Circuit Board Qi Wireless charger receiver module
shared：

Model Number
Wireless Charging Module
Application
phone charging
Input Power
DC5V ± 0.25V/2A            Output: 1A
Product Weight
0.005kg
Charging Efficiency
75%
Transmission distance
2-8mm
Executive standard
Qi wireless charging standard
