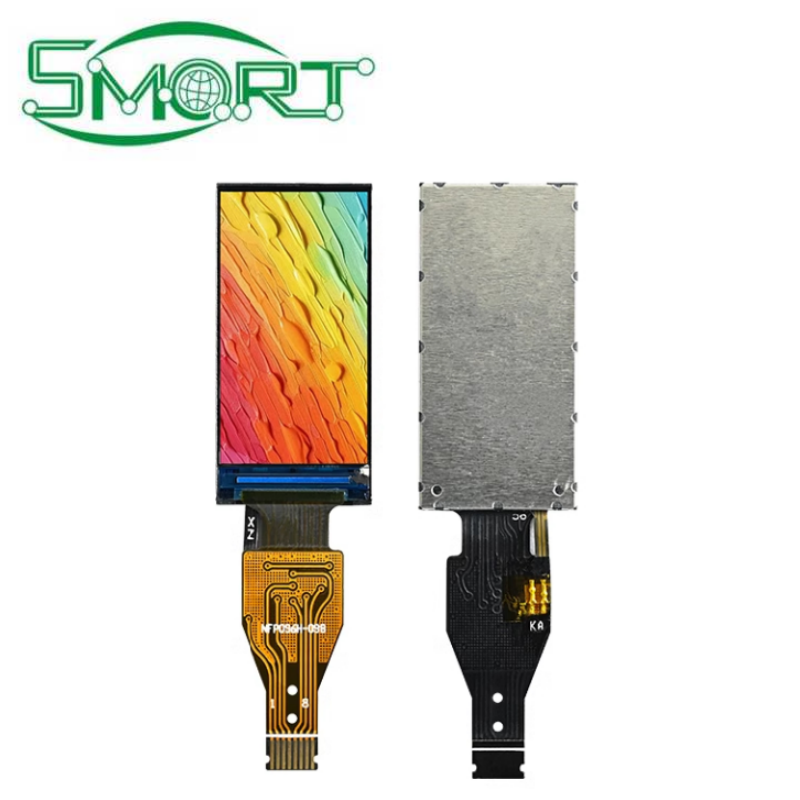

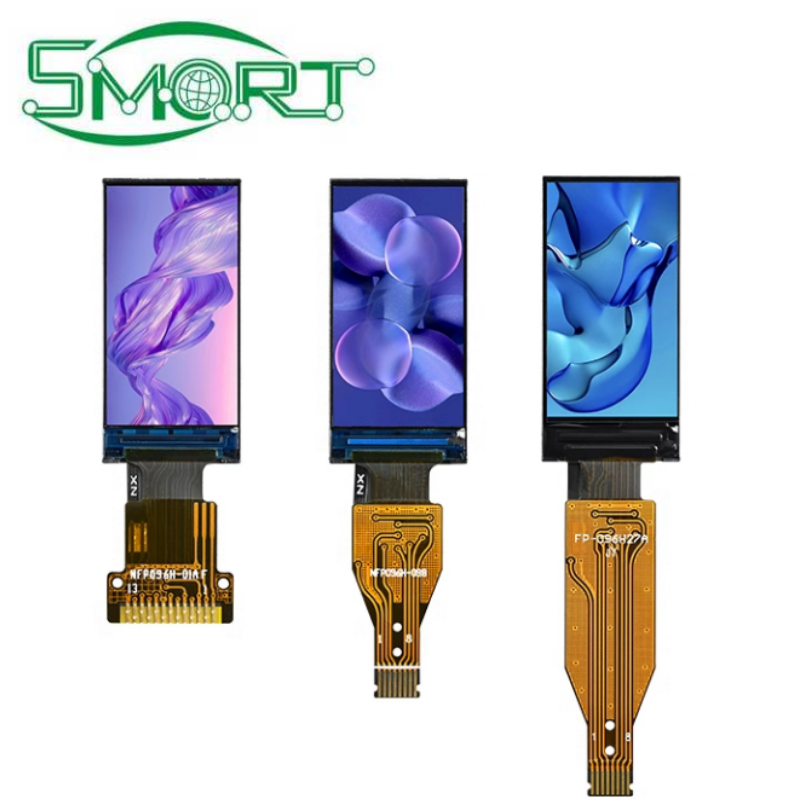

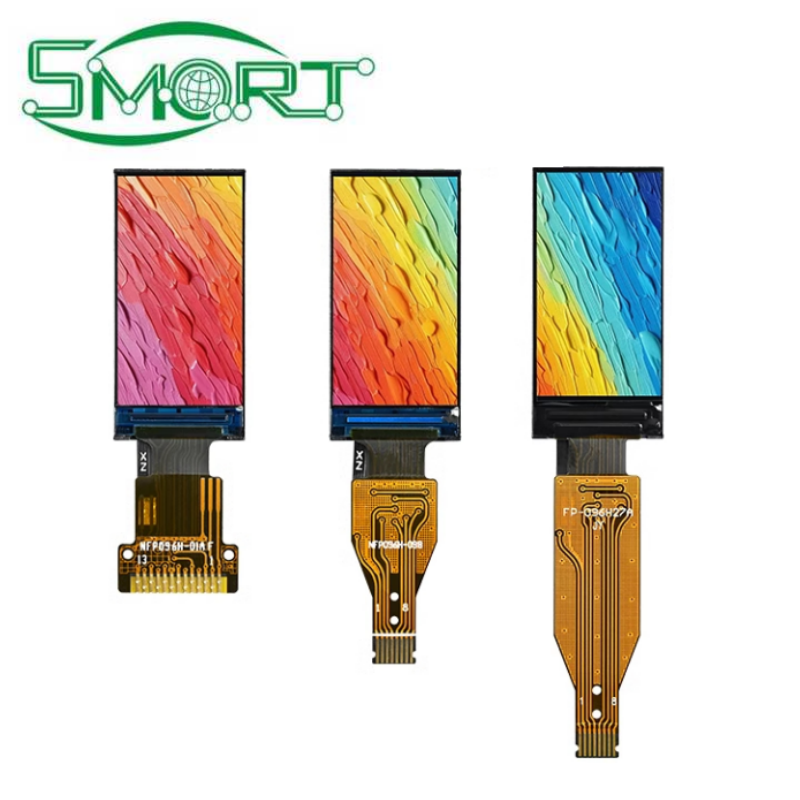

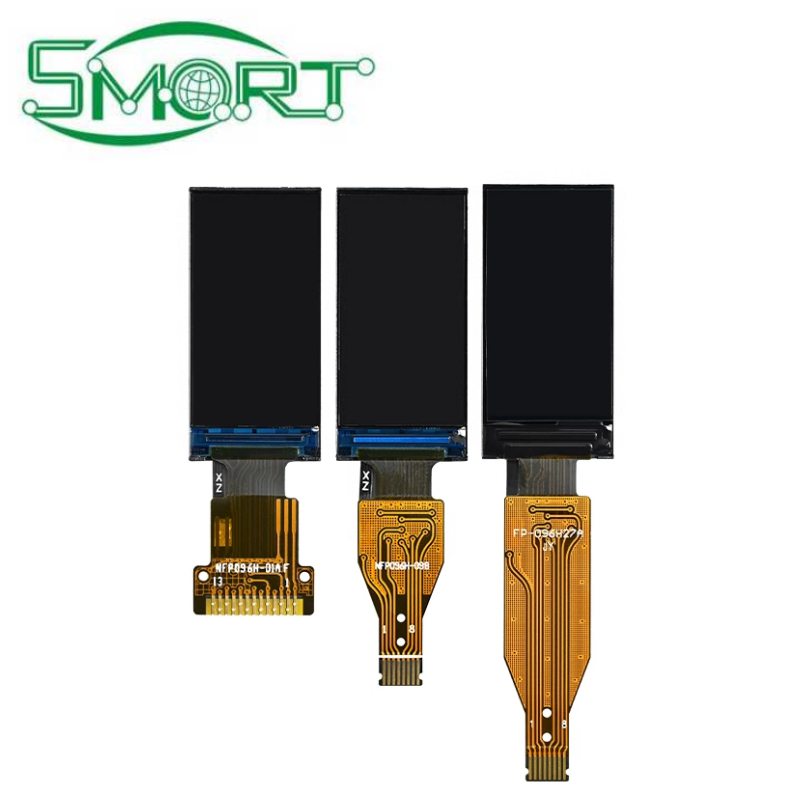

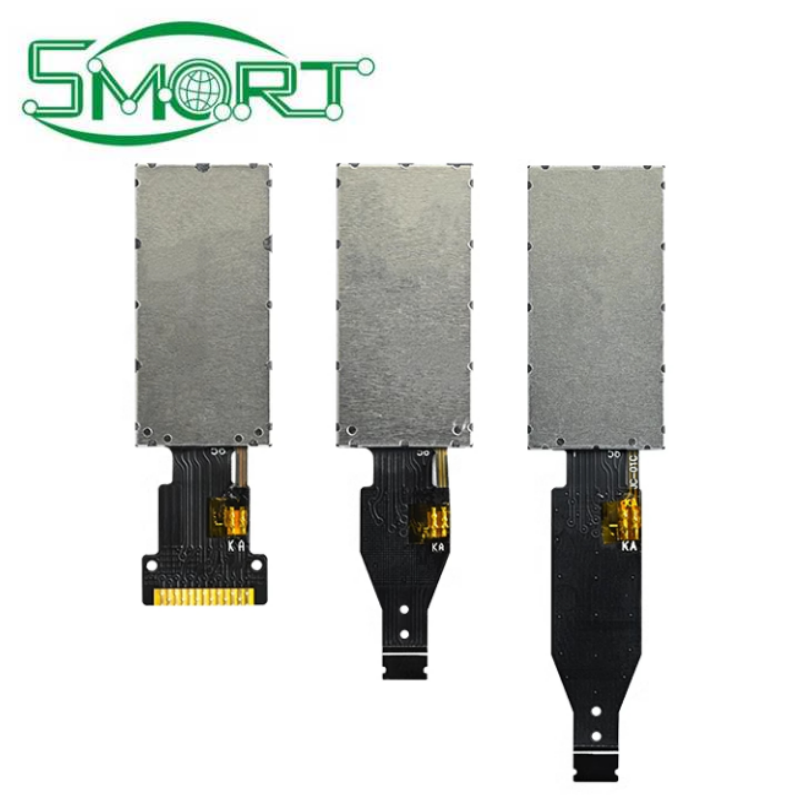

Smart Electronics IPS 0.96-inch TFT display IPS LCD screen 0.96 "st7735 IPS display screen 0.96 inch LCD Module

IPS 0.96-inch TFT display IPS LCD screen 0.96 "st7735 IPS display screen 0.96 inch LCD Module
shared：

Size
0.96 inches
Material
High definition IPS LCD
Resolution
80 (H) RGB x 160 (V)
Driver chip
ST77355
Communication interface
4 Line SPI
Display color
Full color
Display area
10.8 (H) × 21.7 (V) mm

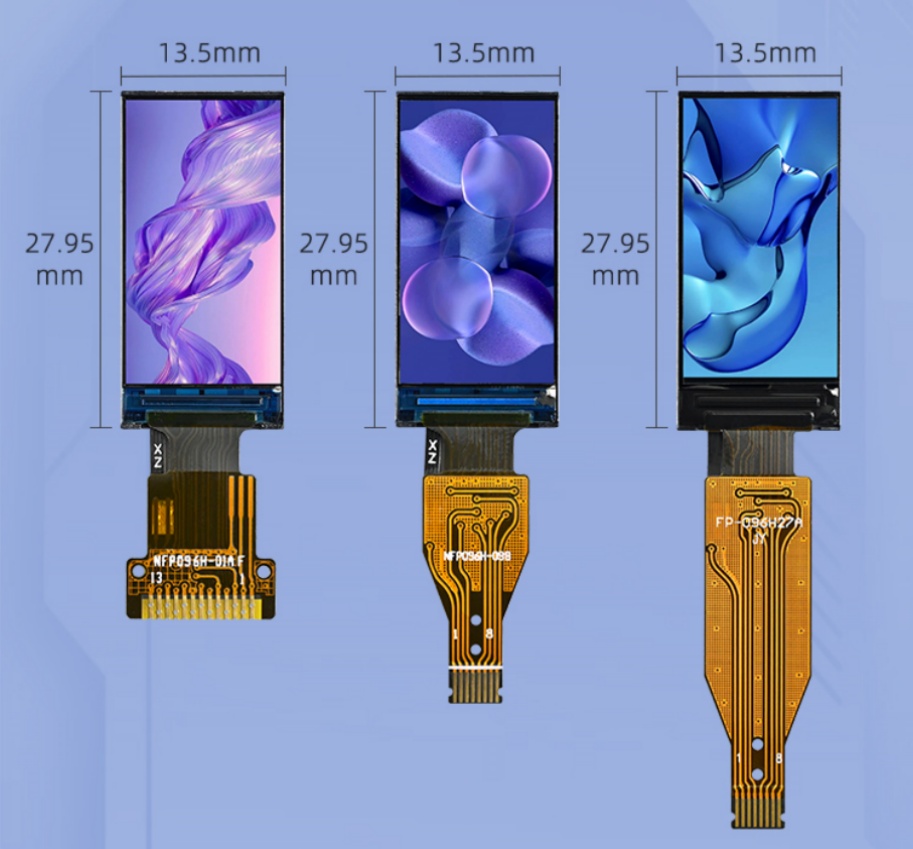

Panel size
13.5 (H) x27.95 (V) × 15Max (D) mm
Pixel spacing
0.135 (H) X0.1356 (V) mm
Connection method

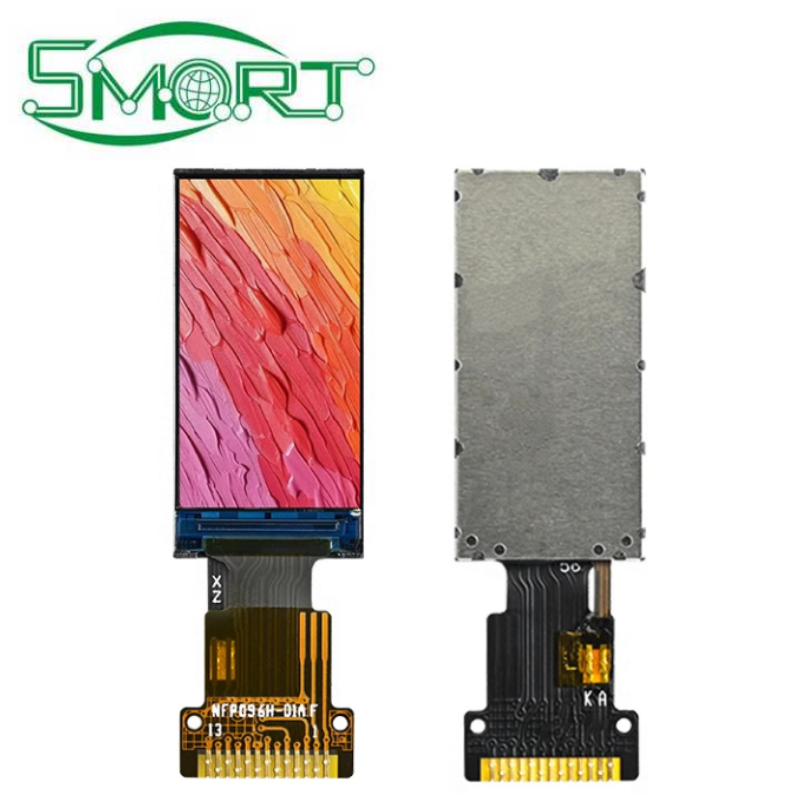

Welding type 13 pin (0.7mm spacing welding type)
Connection method

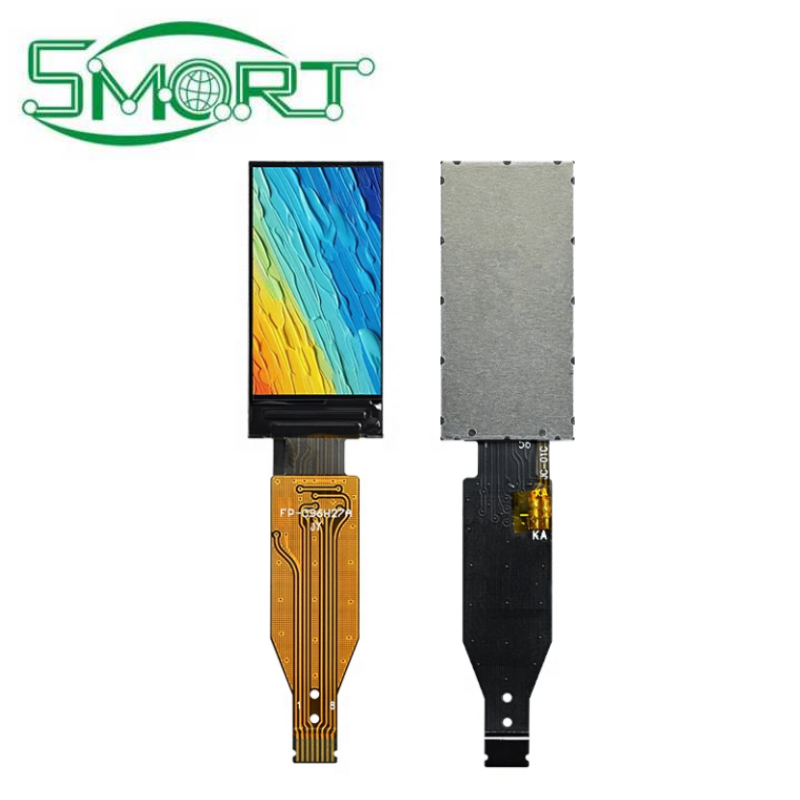

Plug in 8Pin (0.5mm pitch top up FPC cable, with two lengths to choose from)
Perspective direction
All View
Working voltage
3.3V
Working current
20ma
Backlight type
1LED
Working temperature
-20~70 ° C
