Smart Electronics 0.49 inch OLED bare screen display LCD screen resolution 64 * 32 IIC interface SSD1306 driver (white)

shared：

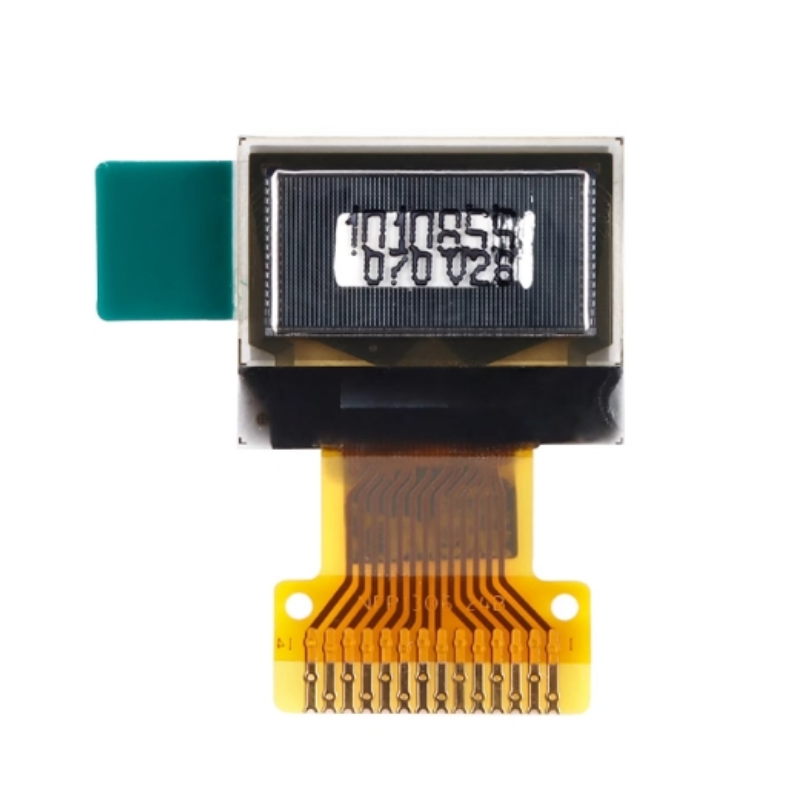

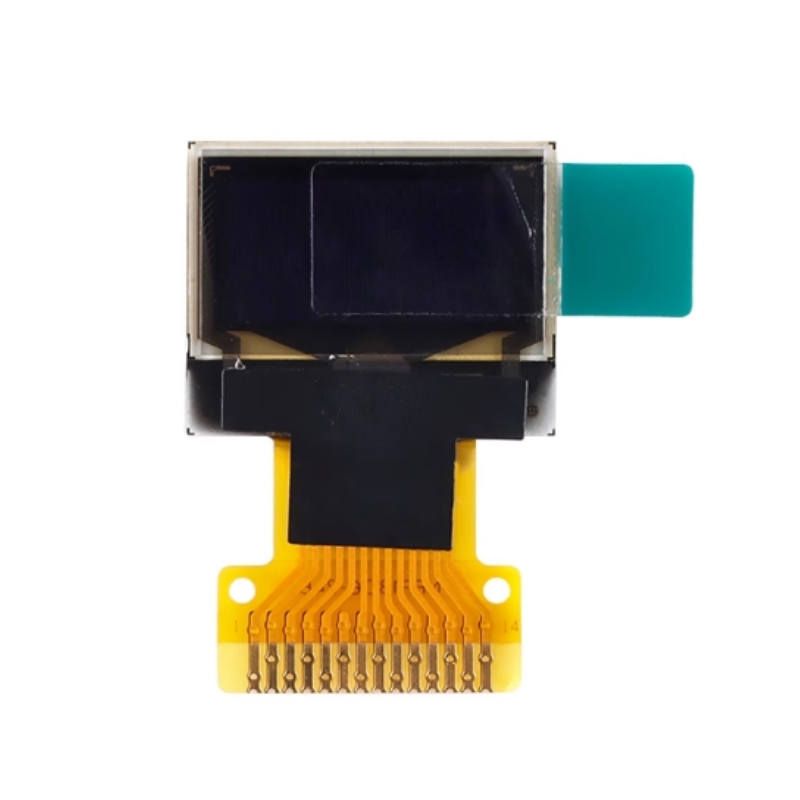

0.49 inch OLED bare screen display LCD screen resolution 64 * 32 IIC interface SSD1306 driver (white)
Type
oled
Display Size
0.49 inch
Product Name
049 inch OLED monochrome display screen
Resolution
64 * 32
Working voltage
3.3V
Control chip
SSD1306
Display area
11.18 * 5.58 (mm)
Panel size
26.70*19.26*14 (mm)
Pixel spacing
0.175 * 0.175 (mm)
Pixel size
0.155 * 0.155 (mm)
Number of pins
14in (welded 14pin, 0.7mm spacing)
Working temperature
-40~85 °C
Perspective direction
full view
Interface type
 IIC interface
