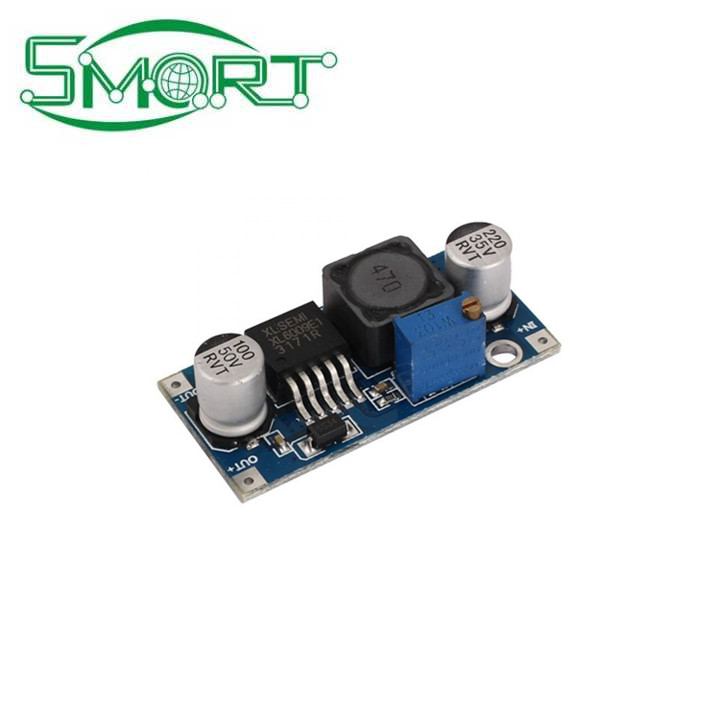

XL 6009 DC to DC Step Up Converter xl6009 step-up power module dc motor

This DC-DC Module is based on IC XL6009E1 which is a high-performance step-up switching current (BOOST) module. The module uses the second generation of high-frequency switching technology XL6009E1 core chip that offers superior performance over the first generation technology LM2577. XL6009 replaces LM2577 module as LM2577 is about to be phased out.

shared：



This DC-DC Module is based on IC XL6009E1 which is a high-performance step-up switching

current (BOOST) module. The module uses the second generation of high-frequency switching
technology XL6009E1 core chip that offers superior performance over the first generation
technology LM2577. XL6009 replaces LM2577 module as LM2577 is about to be phased out.

Type Non:Isolated Boost ( BOOST )

Voltage Regulation:+-0.5%
Working Temperature:-40 deg C ~ +85 deg C

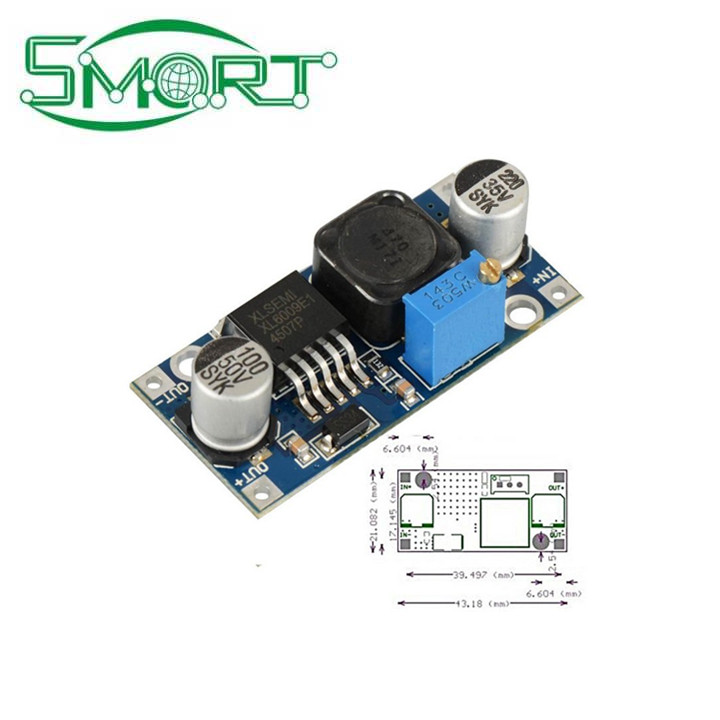

Dimensions:43mm * 21mm * 14mm (length * width* height)

Input Range:3V ~ 32V

Output Range:5V ~ 35V

Input Current:4A (maximum), load 18mA ( 5Vinput, 8V output, no-load is less than 18mA . The higher the voltage

Conversion Efficiency:Better than 94% (the greater the current, the lower the efficiency)

Switching Frequency:400KHz

Output Ripple:50mV (the higher the voltage, the greater the current, the greater ripple)

Load Regulation:+-0.5%
