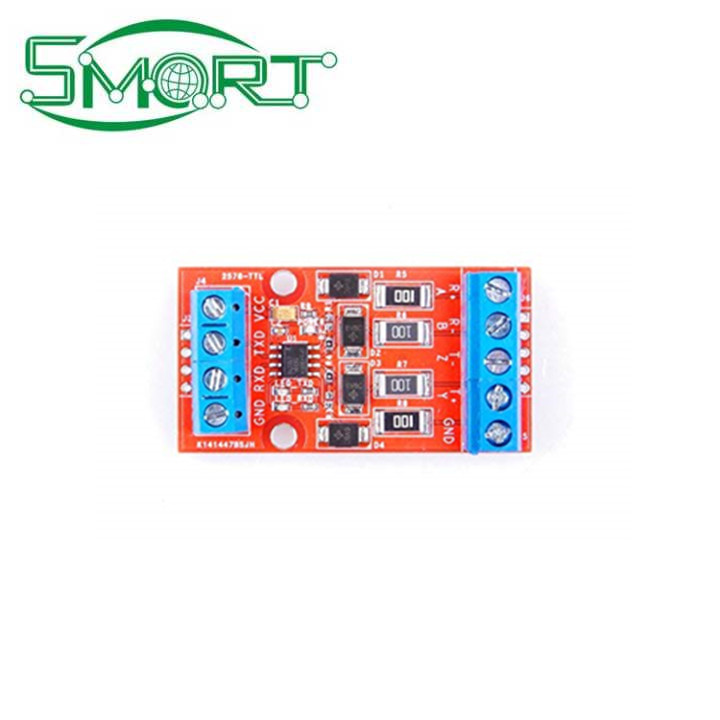

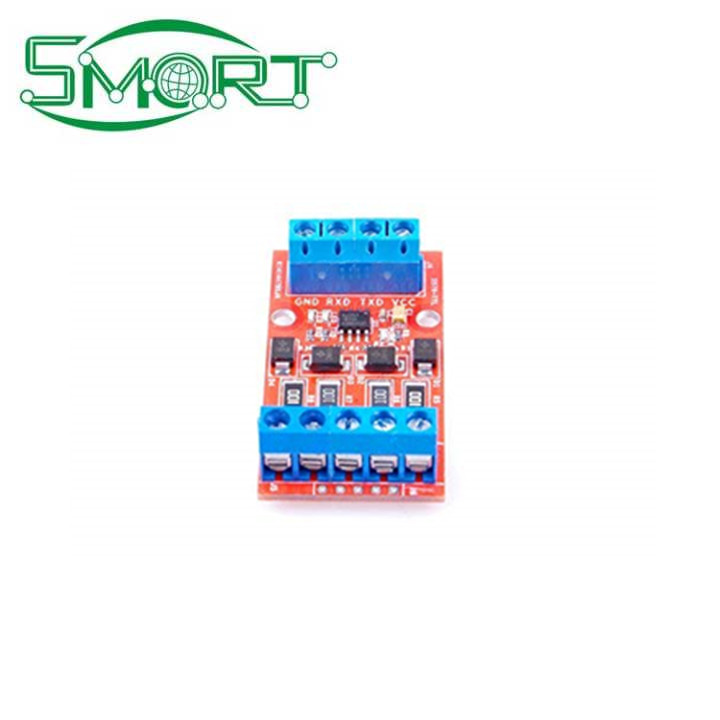

RS422 to TTL/UART/MCU Serial Port Signal Mutual Module with Over-Voltage Over-Current Protection-3.3V

VCC: + 3.3V

TXD : The module's TTL (UART) to send, connected to the microcontroller's RXD receiver pin;

RXD : The module's TTL (UART) receiver, connected to the microcontroller TXD send pin;

GND : The module ground wire (this wire must be connected with the ground wire of microcontroller system);
shared：


VCC: + 3.3V

TXD : The module's TTL (UART) to send, connected to the microcontroller's RXD receiver pin;

RXD : The module's TTL (UART) receiver, connected to the microcontroller TXD send pin;

GND : The module ground wire (this wire must be connected with the ground wire of microcontroller system);

Module 5P Terminal side:

R + / A : A-Pin of this module, connected to T + / Y pin of other 422 modules;

R- / B : B-Pin of this module, connected to T- / Z pin of other 422 modules;

T- / Z -: Z-Pin of this module, connected to R- / B of other 422 modules;

T + / Y : Y-Pin of this module, connected to R + / A pin of other 422 modules;
