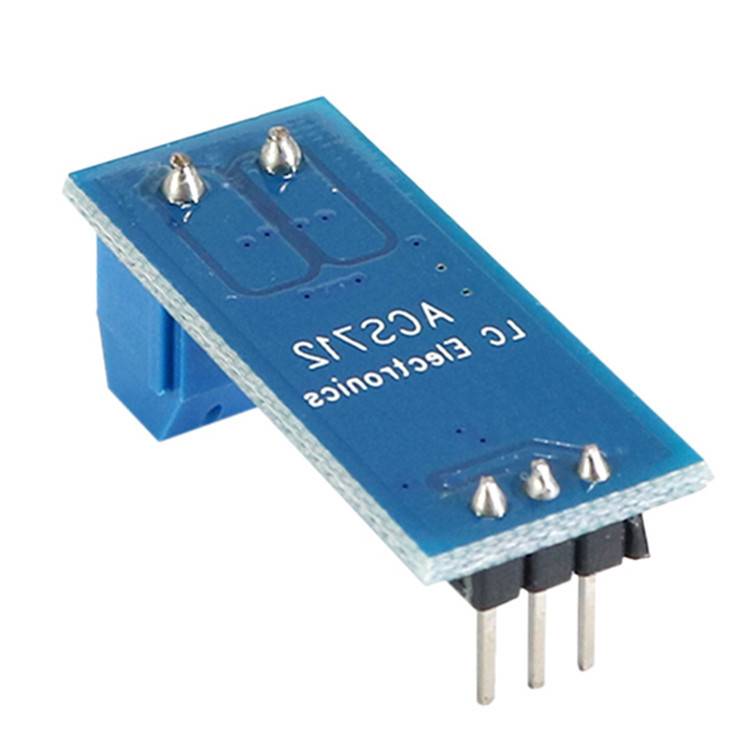

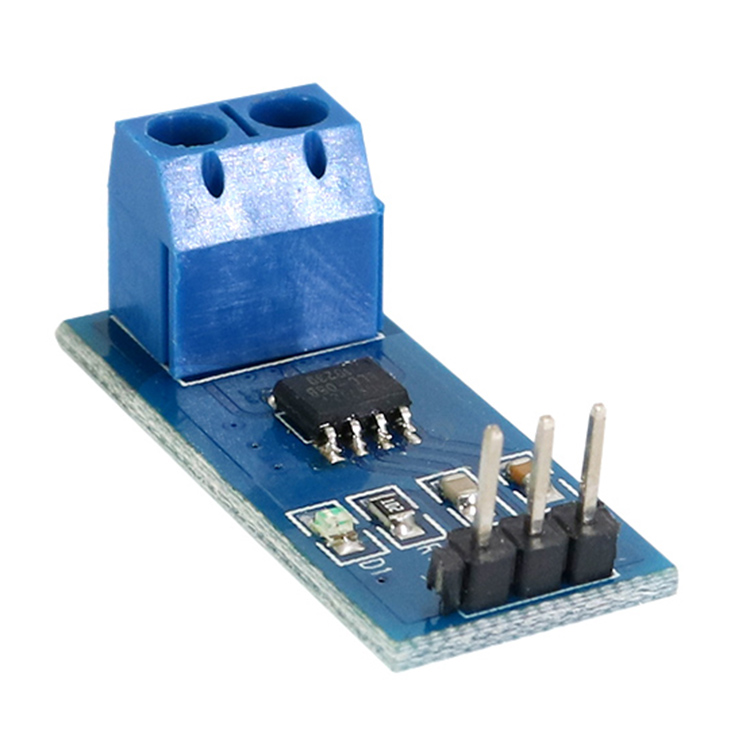

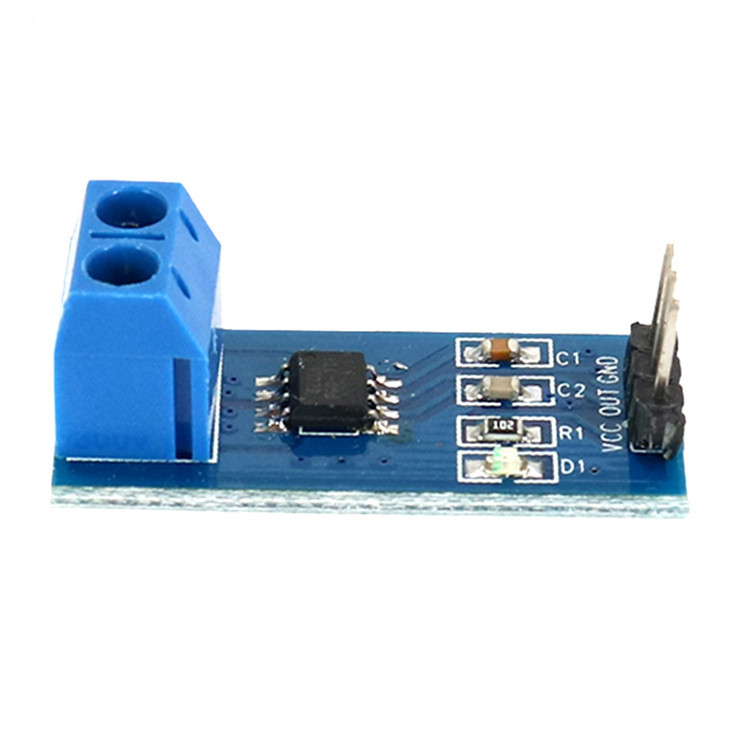

Smart Electronics ACS712ELC-05B 5A range ACS712 module AC current sensor module

ACS712ELC-05B 5A range ACS712 module AC current sensor module

1. Current sensor chip: ACS712ELC-05B;
2. Pin 5V power supply, onboard power indicator;
3. The module can measure plus or minus 5A current, corresponding to the analog output 185mV/A;
4. When no detection current passes, the output voltage is VCC/2;
5. PCB board size: 31(mm)x13(mm);
shared：


1. Current sensor chip: ACS712ELC-05B; 2. Pin 5V power supply, onboard power indicator; 3. The module can measure plus or minus 5A current, corresponding to the analog output 185mV/A; 4. When no detection current passes, the output voltage is VCC/2; 5. PCB board size: 31(mm)x13(mm); Note: ACS712 is based on the principle of Hall detection, please try to avoid the influence of the magnetic
field when using it!
