Thin film pressure sensor resistive force sensitive and pressure sensitive plantar flexible PVDF robot tactile FSR402 406

shared：

SKU-1-MD30-60

OD: 30mm Range: 3kg-50kg

SKU-2-MD30-60

OD: 30mm
Range: 200g-30kg

SKU-3-MD30-60

OD: 30mm
Range: 150g-20kg

SKU-4-FSR406

Square 40x40MM short tail Range: 20g-10Kg

SKU-05-RP-C5-LT
OD: 5mm
Range: 20g-1.5kg

SKU-06-RP-C5-ST

OD: 5mm Range: 30g-1kg

SKU-07-RP-C5LT30-LF5

OD: 5mm Range: 5g-600g

SKU-08-RP-C5-ST-LF5

OD: 5mm Range: 5g-600g

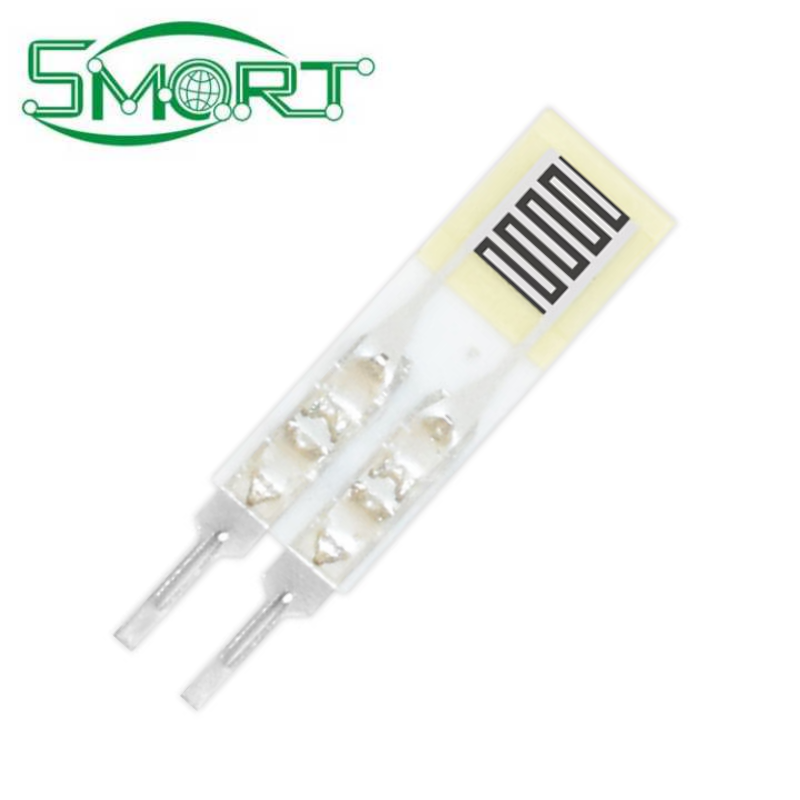

SKU-09-RP-S5-ST

OD: 5mm Range: 10g-1kg

SKU-10-RP-C7.6-LT

OD: 7.6mm Range: 30g-1.5kg

SKU-11-RP-C7.6-ST

OD: 7.6mm
Range: 30g-1.5kg

SKU-12-RP-C7.6-ST-LF2

OD: 7.6mm
Range: 2g-1.5kg

SKU-13-RP-C7.6-LT-LF2

OD: 7.6mm
Range: 2g-1.5kg

SKU-14-RP-C18.3-LT

OD: 18.3mm
Range: 20g-6kg

SKU-15-RP-C18.3-ST

OD: 18.3mm Range: 20g-6kg

SKU-16-RP-C10-LT

OD: 10mm Range: 20g-2kg

SKU-17-RP-C10-ST

OD: 10mm Range: 5g-2kg

SKU-18-RP-C10-ST-LF2

SKU-19-RP-C30-ST

OD: 30.5mm Range: 20g-20kg

SKU-20-FSR406

Square 40x40MM long tail Range: 20g-10kg
Thin film pressure sensor resistive force sensitive and pressure sensitive plantar flexible PVDF robot tactile FSR402 406

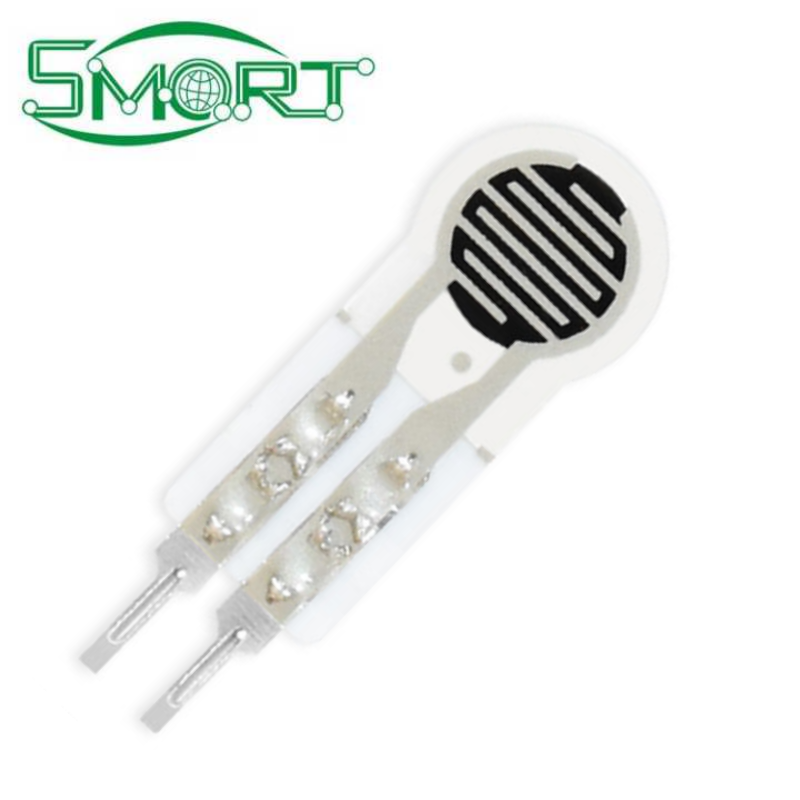

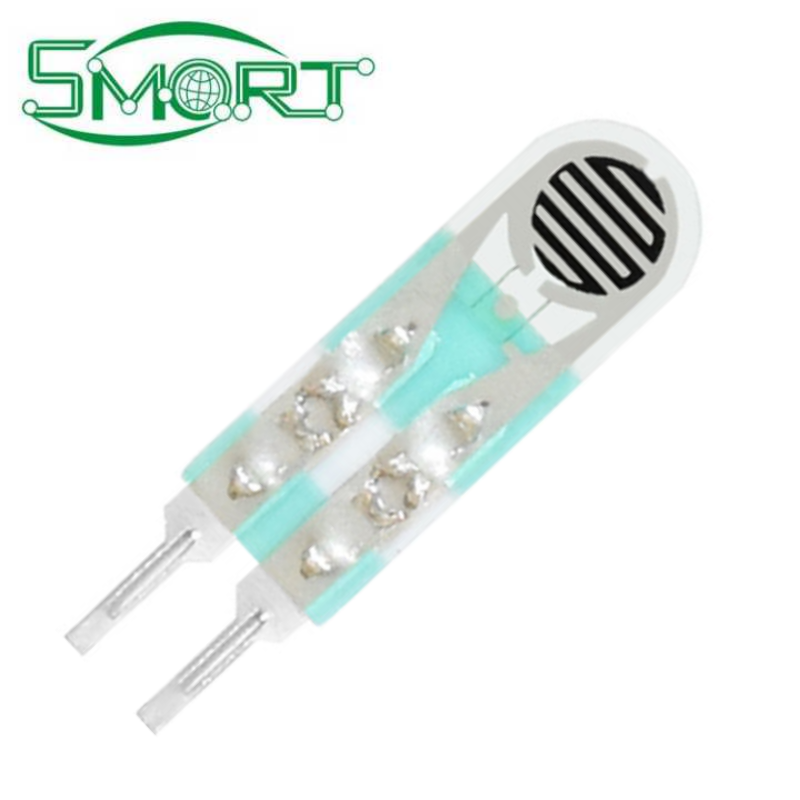

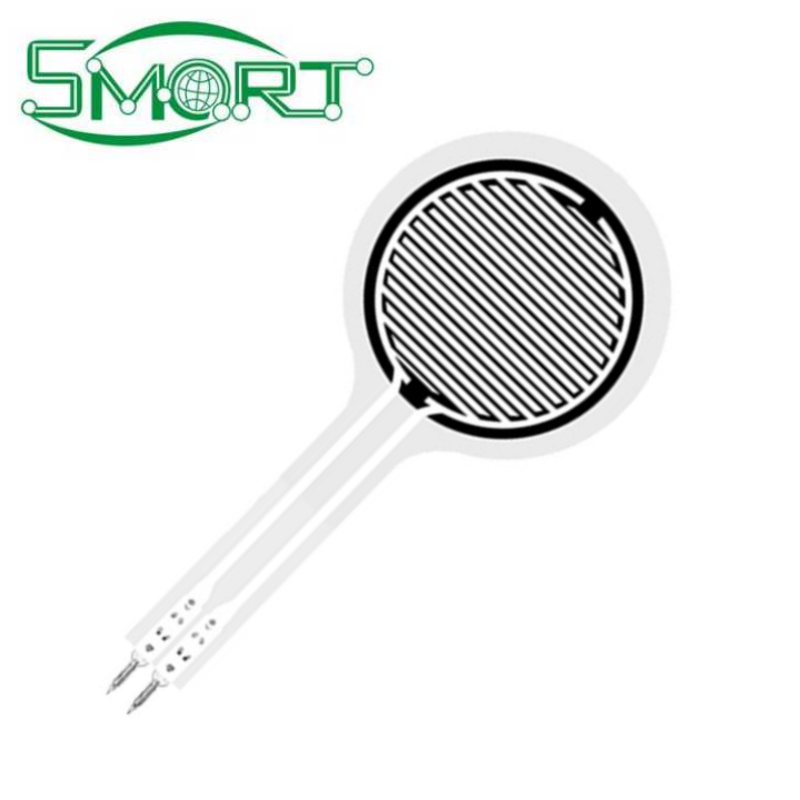

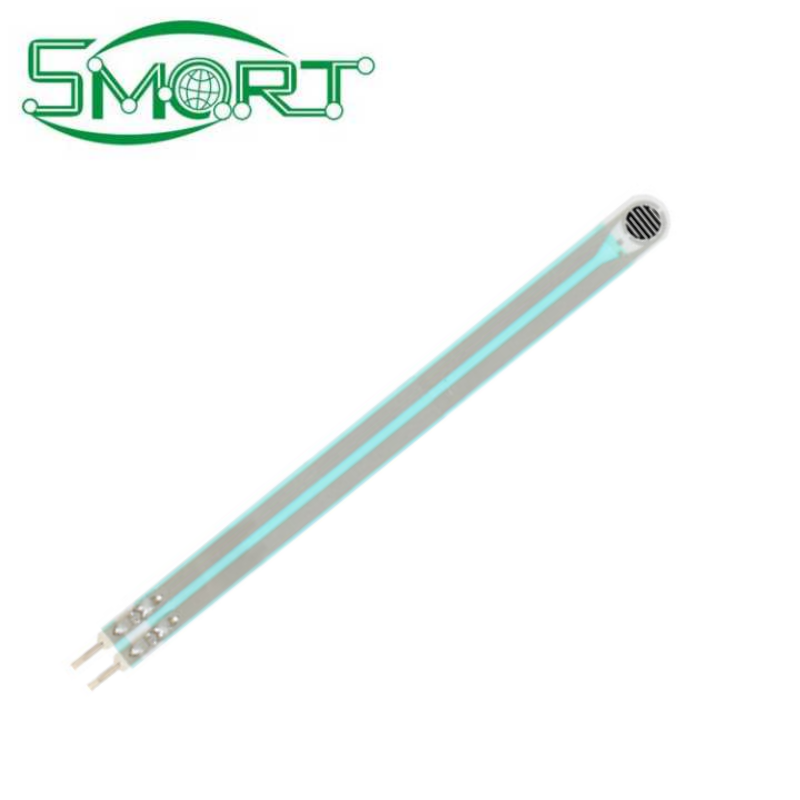

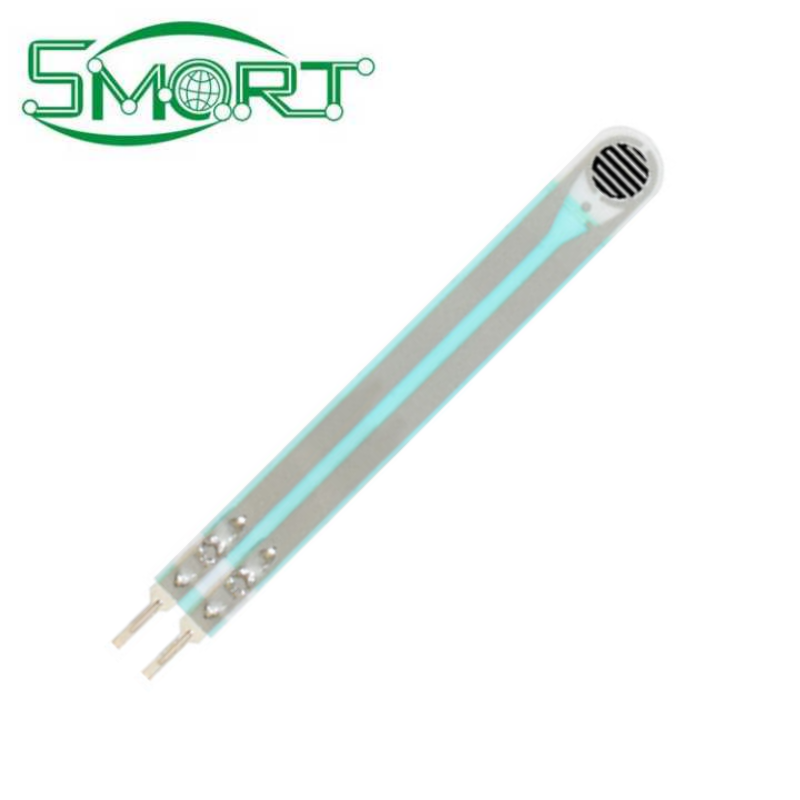

RP-C resistive pressure sensitive sensor is a flexible thin film sensor whose resistance value decreases with the increase

of pressure acting on the sensing area. A single induction zone sensor is equivalent to a dual port variable resistor with a

resistance value controlled by pressure, or a switch with a certain threshold, which is determined by the combination of

pressure and device parameter settings. The RP-C flexible film pressure sensor is composed of polyester film with excellent

comprehensive mechanical properties, high conductivity materials, and nanoscale pressure sensitive materials. The top

layer is a flexible film and a composite pressure sensitive layer on top, while the bottom layer is a flexible film and a composite

conductive circuit on top. Both are bonded with double-sided adhesive and isolated from the sensing area. When the sensing

area is under pressure, the lines that are disconnected from each other at the bottom layer will conduct through the top layer

of the pressure sensitive layer, and the resistance output value of the port will change with the pressure.

Thickness
0.4mm
Style
Thin sheet, flexible
Trigger force
20g, triggered when the default resistance value is less than 200k
Pressure sensing range
20g~6kg
Pressure application mode
static or dynamic (frequency within 10Hz)
Resistance when not triggered
greater than 10M Ω
Activation time
less than 0.01s
Operating temperature
-40 ° C~+85 ° C
Durability
Over 1 million cycles
Consistency
Within+/-3% of the resistance value of a single product, within+/-10% of the same batch of products (under the same testing conditions)
Hysteresis
+10%, (RF+- RF)/FR+, 1000g force
Response time
<10ms
Electromagnetic interference EMI
not generated
Classic release EDS
insensitive
Drift
<5%, 2.5Kg force static load for 24h
Compliant with RoHS
